mpn:
brand:

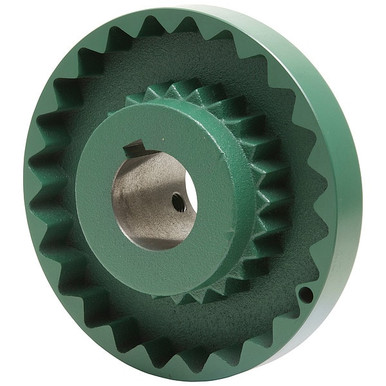

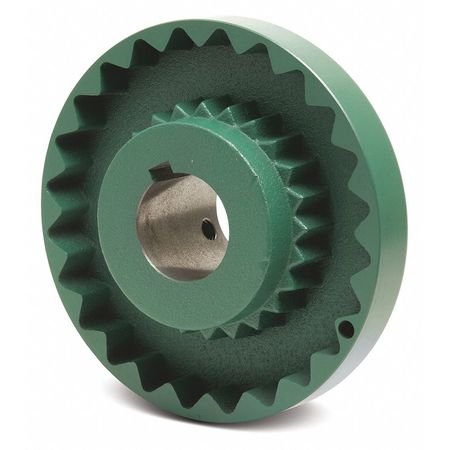

name: TB WOOD'S
manufacturer:
MPN:
Weight:
4.0
Weight:
4.4 LB
Preferred Price:
91.9
Price:
91.9
Min Simple Price:
47.49
Absolute Min Price:
72.43
Min Price:
72.43
Dimensions:
[7.0, 7.0, 3.0]
qty:
21
simpleSku:
NTcwMQ:::8S218
sku:
NTcwMQ::5T:8S218@y0
condition:
11
seller:
Zoro
amzMan:
tb wood's
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Bore Dia. (In.) | 2-1/8 |
| Bore Dia., Bore Diameter, Bore size | 2 1/8 in |
| Bore size (in) | 2 1/8 |
| Bore tolerance | +.0005 to +.0020 |
| Bore tolerance (in) | +0.0005 to +0.0020 |
| Bore Type - Couplings | Fixed Bore |
| bore type: | Finished w/ Keyway |
| Brand | Tb Woods |
| Color | Green |
| Component WR2 (lbs ft2), Component WR? | 0.1041 |
| Construction type | Finish bore with keyway |
| coupling overall length: | 3-1/4 in |
| Coupling size, Coupling Size, coupling size code:, Max parallel misalignment, Size - Sleeve Couplings | 8 |
| Current Stock | 9 |
| Dimension (in) (C) | 2 3/32 |
| Dimension (in) (D), Flange diameter, Outside diameter | 5.45 |
| Dimension (in) (H) | 3-1/4 |
| Dimension (in) (S), Setscrew length (in) | 3/8 |
| Dimension (in) (T) | 29/32 |
| Dimension (in.) (E), SF hub length | 3/4 |
| Flange Type - Sleeve Couplings, hub flange type code: | S |
| For Bushing Size | Not Applicable |
| Height (In.), Hub Dia. (In.), Outside Dia. | 5.45 in |
| horsepower @ 100 rpm: | 1.8 (EPDM & Neoprene) hp, 7.2 (Hytrel) hp |
| Horsepower Rating at 100 RPM | 52 |
| Hub Body Length | 3/4 in |
| Hub Diameter | 3 1/4 in |
| hub end outside diameter: | 4-7/16 in |
| hub material: | Cast Iron |
| hub type: | Spacer Flange |
| International Shipping | No |
| Item - Sleeve Coupling Flanges | Sleeve Coupling Flange |
| Keyseat (in) | 1/2 x 3/16 |
| Keyseat size | 1/2 in x 3/16 in |
| Keyseat Size (In.) | 1/2 x 1/4 |
| Keyway Depth | 3/16 in |
| Keyway Size Type | 1/2 in x 1/4 in |
| Keyway Width | 1/2 in |
| Length through bore | 2.09375 |
| Length through Bore (In.), Width (In.) | 2.09 in |
| Material type | High strength cast iron |
| Max angular gap misalignment | 0.094 (in) with EPDM/Neoprene Sleeves and 0.025 (in) with Hytrel Sleeves |
| Max angular misalignment | 1? with EPDM/neoprene sleeves and 1/4? with hytrel sleeves |
| Max compatible bore size | 2.375 |
| Max RPM, Max speed | 4500 |
| maximum rpm: | 4500 RPM |
| Min compatible bore size | 0.4375 |
| Mpn | 8S218 |
| Outside Dia. (In.) | 5.450 |
| Outside Diameter | 5 29/64 in |
| Power rating at 100 RPM | 1.8 kW with EPDM or Neoprene sleeve, 5.4 kW with Hytrel sleeve |
| Screw size | Setscrew |
| Screw Thread Size | 3/8"-16 |
| Screw type | Flange, Type S |
| series: | Sure-Flex |
| Set screw distance, Setscrew length | 0.375 |
| Setscrew Location | One Over the Key and One at 90 Degrees |
| Setscrew size, location | 3/8 16 UNC, One over KS and at 90 Degrees |
| Setscrew torque requirement, Setscrew Torque Requirment (ft lbs) | 23 |
| SF flange length | 0.90625 |
| SF hub diameter | 3.25 |
| SKU | ZO-G8513312 |
| SubCategory | Power Transmission |
| Torque | 1,475 in-lb with EPDM or Neoprene sleeve, 4,530 in-lb with Hytrel sleeve |
| torque capacity: | 4530 in-lbs |
| Torque rate | 1,475 (in-lbs) with EPDM or Neoprene sleeve; 4,530 (in-lbs) with Hytrel sleeve |
| UPC, UPC Code | 698672640619 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G8513312 | 47.49 | 47.49 | 1 | 32 | Tb Woods | 3.84 | 47.49 @ Qty: 1+ | |
 | MRO Supply | 339914 | 50.57 | 70.798 | 2 | In Stock | TB Woods | 50.57 @ Qty: 2+ | ||
 | motionindustries.com | 00513793 | 60.21 | 60.21 | 1 | In Stock | TB Woods (Altra) | 60.21 @ Qty: 1+ | ||
 | simsupply.com | ZO-G8513312 | 62.17 | 62.17 | 1 | 9 | Tb Woods | 62.17 @ Qty: 1+ | ||
 | sustainablesupply.com | C1677865 | 64.77 | 64.77 | 1 | In Stock | TB Wood's | 3.84 | 64.77 @ Qty: 1+ | |
 | Purvis | 8SX2 1/8 | 68.98 | 68.98 | 1 | In Stock | TB Woods | 68.98 @ Qty: 1+ | ||
| us.rs-online.com | 71722860 | 71.77 | 71.77 | 1 | In Stock | TB Wood's (Altra) | 71.77 @ Qty: 1+ | |||
 | bscsource.com | 8S218 | 88.29 | 88.29 | 1 | In Stock | TB Wood's | 88.29 @ Qty: 1+ | ||
 | National Supply Network | 53902060 | 91.08 | 91.08 | 1 | In Stock | TB Wood's | 91.08 @ Qty: 1+ | ||
 | Raptor Supplies | AG3EGW | 124.4616165 | 124.4616165 | 1 | In Stock | TB WOOD'S | 124.4616165 @ Qty: 1+ |
