Description:

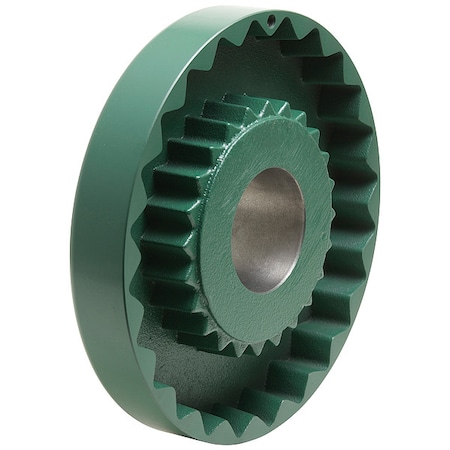

Sleeve Coupling Spacer Flange, Coupling Size 8, Maximum Speed 4,500 RPM, Maximum Torque 1,475 in-lb, Outside Diameter 5 29/64 in, Bore Type Not Applicable, Hub Diameter 3 1/4 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter Not Applicable, Length through Bore 2 1/16 in, System of Measurement Inch, Hub Body Length 23/32 in, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance Not Applicable
Attributes
| Key ^ | Value |
|---|---|
| Body Style | Type-SC Spacer Flange |
| Bore Diameter, For Bushing Size, Keyway Depth, Keyway Width | Not Applicable |
| Bushing Required, Keyseat Size (In.) | None |
| Coupling Size, Size - Sleeve Couplings | 8 |
| Flange Type - Sleeve Couplings | SC |
| Height (In.), Outside Dia. | 5.45 in |
| Hub Body Length | 23/32 in |
| Hub Diameter | 3 1/4 in |
| Ideal For | Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors |
| Item, Item - Sleeve Coupling Flanges | Sleeve Coupling Spacer Flange |
| Material of Construction | cast iron |
| Max. Angular Misalignment | 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves |
| Max. RPM | 4,500 RPM |
| Outside Dia. (In.) | 5.450 |
| Outside Diameter | 5 29/64 in |
| Weight | 4.3 lb |
| Width (In.) | 2.063 in |
