TB Woods AK1041

B003N17IE4

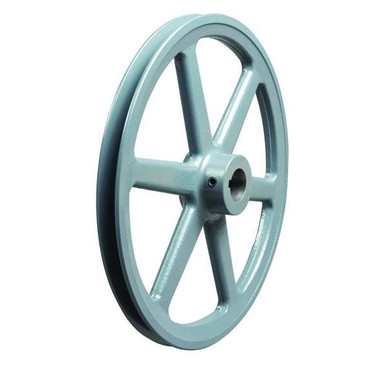

TB Woods AK1041 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1" Bore, Cast Iron, 10.25" OD, 2440 max rpm

TB Woods AK1041 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1" Bore, Cast Iron, 10.25" OD, 2440 max rpmzoom

Attributes

Key Value
3L Belt Pitch Dia.9.66 in
3L Pitch Diameter9.91 in
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter10.25 in
4L, A, or AX Belt Pitch.10 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter10.25 in
AX Pitch Diameter10.25 in
B Pitch DiameterNot Applicable
Belt sectionA-4L-3L
Bore Diameter1 in
Bore TypeFixed
Bore typeFinished with keyway
Bore-to-size bore diame.1
Bore-to-size keyseat1/4 in x 1/8 in
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.45
ConstructionArm
Current Stock47
CX Pitch DiameterNot Applicable
Datum diameter10
Dimension0.72
Face Width0.75 in
Face width0.75
Face width (in)0.75
Fits Shaft Dia.1 in
For Belt Trade Size3L, 4L, A, AX
For V-Belt Section3L, 4L, A, AX
For V-Belt TypeClassical, Cogged
Groove cross section se.A
Hub location-0.72
Hub location (in)-0.72
Hub Projection0.72 in
Hub TypeOne Side
I.D.9.88
IncludesSet Screw
Industry NumberAK1041
Inertia WR?46
Inside diameter (in)9.88
International ShippingNo
ItemStandard V-Belt Pulley
KeywayYes
Keyway Depth1/8 in
Keyway Size0.250" x 0.125"
Keyway Size Type0.250 in x 0.125 in
Keyway Width1/4 in
Length through Bore1 15/32 in
MaterialCast Iron
Material FabricationCast
Material typeCI
Max RPM2440
Maximum Bore Diameter1 11/16 in
MpnAK1041
Number of Grooves1
Number of grooves1
Number of Steps1
O.D.10.25
Outside Diameter10.25 in
Outside diameter (in)10.25
Overall Width1 1/2 in
Pitch diameter10.25
Pitch Diameter10.25 in
Pitch Diameter for V-Be.3L: 9.91 in / 4L: 10.25.
Prop 65Warning: This product c.
Pulley Bore Dia.1 in
Pulley Bore TypeFixed Bore
Pulley MaterialCast Iron
Pulley Outside Dia.10.25 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit2440
Set Screw IncludedYes
SKUZO-G2374391
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672097918
Weight5.7 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG237439143.891110Tb Woods5.543.89 @ 1
thumbzoombscsource.comAK104150.391In StockTB Wood's50.39 @ 1
AmazonTPB003N17IE454.311In Stock15Tb Wood'S54.31 @ 1
thumbzoomsimsupply.comZO-G237439157.91147Tb Woods57.91 @ 1
grainger.caWWG5RHX262.99996081In StockTB WOOD'S5.262.9999608 @ 1
thumbzoomNational Supply Network8222373665.231In StockTB Wood's65.23 @ 1
thumbzoomsustainablesupply.comC169302966.061In StockTB Wood's5.566.06 @ 1
thumbzoomMRO Supply34578398.871In StockTB Woods98.87 @ 1
us.rs-online.com73931928109.691In StockTB Wood's (Altra)109.69 @ 1
thumbzoomRaptor SuppliesAE6FJL130.96459351In StockTB WOOD'S130.9645935 @ 1
