- mpnAK1441
- brandname: TB Woods
- manufacturername: TB Woods

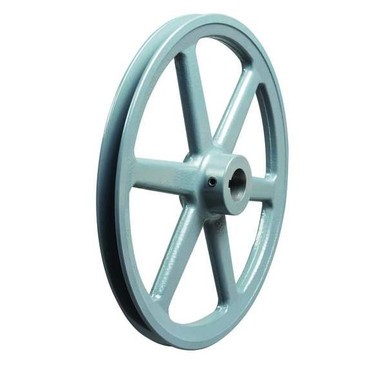

TB Woods AK1441 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1" Bore, Cast Iron, 14.25" OD, 1760 max rpm
- Brand: TB Woods
- PartNumber: AK1441
- Size: 1760 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Belt Pitch Dia. | 13.66 in |
| 3L Pitch Diameter | 13.91 in |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 14.25 in |
| 4L, A, or AX Belt Pitch. | 14 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 14.25 in |
| ASIN | B003N17IUS |
| AX Pitch Diameter | 14.25 in |
| B Pitch Diameter | Not Applicable |
| Belt section | A-4L-3L |
| Belt Section and Type (. | 3L Cogged, 4L Classical. |
| Bore Diameter | 1 in |
| Bore type | Finished with keyway |
| Bore Type | Fixed |
| Bore-to-size bore diame. | 1 |
| Bore-to-size keyseat | 1/4 in x 1/8 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | Not Applicable |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 1.48 |
| Construction | Arm |
| Current Stock | 47 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 14 |
| Dimension | 0.72 |
| Face width | 0.75 |
| Face Width | 0.75 in |
| Face width (in) | 0.75 |
| Fits Shaft Dia. | 1 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Section (broad. | 3L, 4L, A, or AX |
| For Belt Trade Size | 3L, 4L, A, AX |
| For V-Belt Section | 3L, 4L, A, AX |
| For V-Belt Type | Classical, Cogged |
| Groove cross section se. | A |
| Hub location | -0.72 |
| Hub location (in) | -0.72 |
| Hub Projection | 0.72 in |
| Hub Type | One Side |
| I.D. | 13.88 |
| Includes | Set Screw |
| Industry Number | AK1441 |
| Inertia WR? | 142 |
| Inside diameter (in) | 13.88 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway | Yes |
| Keyway Depth | 1/8 in |
| Keyway Size | 0.250" x 0.125" |
| Keyway Size Type | 0.250 in x 0.125 in |
| Keyway Width | 1/4 in |
| Length through Bore | 1 15/32 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 1760 |
| Maximum Bore Diameter | 1 11/16 in |
| Mpn | AK1441 |
| Number of grooves | 1 |
| Number of Grooves | 1 |
| Number of Steps | 1 |
| O.D. | 14.25 |
| Outside Diameter | 14.25 in |
| Outside diameter (in) | 14.25 |
| Overall Width | 1 1/2 in |
| Pitch Diameter | 14.25 in |
| Pitch diameter | 14.25 |
| Pitch Diameter for V-Be. | 3L: 13.91 in / 4L: 14.2. |
| Prop 65 | Warning: This product c. |
| Pulley Bore Dia. | 1 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 14.25 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 1760 |
| Set Screw Included | Yes |
| SKU | ZO-G2263091 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672094368 |
| Weight | 8.6 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2263091 | 80.49 | 1 | 118 | | Tb Woods | 10.74 | 80.49 @ 1 |
 | simsupply.com | ZO-G2263091 | 82.94 | 1 | 47 | | Tb Woods | | 82.94 @ 1 |
 | sustainablesupply.com | C2682898 | 82.95 | 1 | In Stock | | TB Wood's | 10.74 | 82.95 @ 1 |
 | bscsource.com | AK1441 | 84.29 | 1 | In Stock | | TB Wood's | | 84.29 @ 1 |
 | Amazon | B003N17IUS | 90.22 | 1 | In Stock | | TB Woods | 10.0 | 90.22 @ 1 |
| grainger.ca | WWG5RHY1 | 97.71526178 | 1 | In Stock | | TB WOOD'S | 10.74 | 97.71526178 @ 1 |
 | National Supply Network | 82223074 | 102.48 | 1 | In Stock | | TB Wood's | | 102.48 @ 1 |
 | MRO Supply | 345803 | 169.4 | 1 | In Stock | | TB Woods | | 169.4 @ 1 |
| us.rs-online.com | 73931957 | 187.95 | 1 | In Stock | | TB Wood's (Altra) | | 187.95 @ 1 |
 | Raptor Supplies | AE6FJW | 208.8662355 | 1 | In Stock | | TB WOOD'S | | 208.8662355 @ 1 |
| motionindustries.com | 00734255 | 228.59 | 1 | In Stock | | TB Woods (Altra) | | 228.59 @ 1 |
