TB Woods AK2058

B003N17JHK

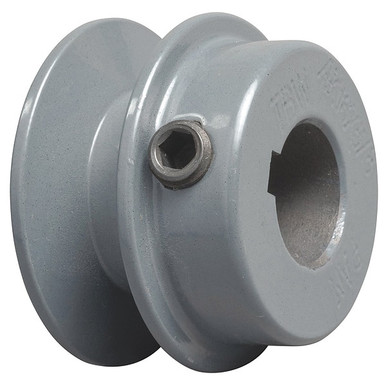

TB Woods AK2058 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 5/8" Bore, Cast Iron, 2.05" OD, 12200 max rpm

TB Woods AK2058 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 5/8" Bore, Cast Iron, 2.05" OD, 12200 max rpmzoom

Attributes

Key Value
3L Belt Pitch Dia.1.46 in
3L Pitch Diameter1.71 in
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter2.05 in
4L, A, or AX Belt Pitch.1.8 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter2.05 in
ASINB003N17JHK
AX Pitch Diameter2.05 in
B Pitch DiameterNot Applicable
Belt sectionA-4L-3L
Belt Section Size3L ; 4L ; A
belt section size:3L, 4L, A
Bore Diameter5/8 in
bore diameter:0.6250 in
Bore typeFinished with keyway
Bore TypeFixed
bore type:Finished w/ Keyway & SS
Bore-to-size bore diame.0.63
Bore-to-size keyseat3/16 in x 3/32 in
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.00
ConstructionSolid
Current Stock397
CX Pitch DiameterNot Applicable
Datum diameter1.8
Dimension0.44
Face width0.66
Face Width0.66 in
Face width (in)0.66
Fits Shaft Dia.5/8 in
For Belt FamilyClassical, Classical Co.
For Belt Trade Size3L, 4L, A, AX
For V-Belt Section3L, 4L, A, AX
For V-Belt TypeClassical, Cogged
Groove cross section se.A
Hub location-0.44
Hub location (in)-0.44
Hub Projection0.44 in
I.D.1.68
Industry NumberAK2058
Inertia WR?1
Inside diameter (in)1.68
International ShippingNo
ItemStandard V-Belt Pulley
Item model numberAK2058
Keyway Depth3/32 in
Keyway Size0.187" x 0.093"
Keyway Size Type0.187 in x 0.093 in
keyway size:3/16 x 3/32 in
Keyway Width3/16 in
Lead TimeExpected to ship in 1-2.
Length through Bore15/16 in
MaterialCast Iron
Material FabricationCast
Material typeCI
material:Cast Iron
Max RPM12200
Maximum Bore Diameter5/8 in
MpnAK2058
Number of grooves1
Number of Grooves1
O.D.2.05
Outer Diameter2.05 in
Outside Diameter2.05 in
Outside diameter (in)2.05
Overall Width1 1/8 in
overall width:1-3/32 in
Pitch Diameter2.05 in
Pitch diameter2.05
Pitch Diameter for V-Be.3L: 1.71 in / 4L: 2.05 .
pitch diameter:1.71 (3L) in, 2.05 (A/4.
Pulley Bore Dia.5/8 in
Pulley Bore TypeFixed Bore
pulley construction:Plain
Pulley MaterialCast Iron
Pulley Outside Dia.2.05 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit12200
SeriesFHP AK Series
Set Screw IncludedYes
SKUZO-G0903375
SubCategoryPower Transmission
UPC698672090322
UPC Code698672090322
Weight0.5 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB003N17JHK7.231In StockTB Woods0.57.23 @ 1
thumbzoomZoroG09033759.351597Tb Woods0.429.35 @ 1
Grainger5RHY713.8513770TB WOOD'S13.85 @ 1
thumbzoomsimsupply.comZO-G090337517.321397Tb Woods17.32 @ 1
thumbzoomsustainablesupply.comC169303717.671In StockTB Wood's0.4217.67 @ 1
thumbzoombscsource.comAK205818.191In StockTB Wood's18.19 @ 1
thumbzoomMRO Supply34762318.254In StockTB Woods18.25 @ 4
thumbzoommotionindustries.com0073343119.621In StockTB Woods (Altra)19.62 @ 1
thumbzoomNational Supply Network8222312420.191In StockTB Wood's20.19 @ 1
us.rs-online.com7167035220.651In StockTB Wood's (Altra)20.65 @ 1
thumbzoomRaptor SuppliesAE6FKC22.8609811In StockTB WOOD'S22.860981 @ 1
