TB Woods AK2858

B003N17K1U

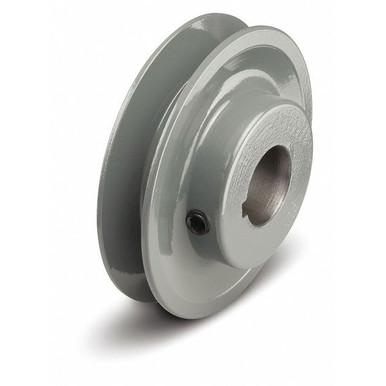

TB Woods AK2858 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 5/8" Bore, Cast Iron, 2.85" OD, 8780 max rpm

TB Woods AK2858 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 5/8" Bore, Cast Iron, 2.85" OD, 8780 max rpmzoom

Attributes

Key Value
3L Belt Pitch Dia.2.26 in
3L Pitch Diameter2.51 in
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter2.85 in
4L, A, or AX Belt Pitch.2.6 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter2.85 in
AX Pitch Diameter2.85 in
B Pitch DiameterNot Applicable
Belt sectionA-4L-3L
Belt Section Size3L ; 4L ; A
Bore Diameter5/8 in
Bore TypeFixed
Bore typeFinished with keyway
Bore-to-size bore diame.0.63
Bore-to-size keyseat3/16 in x 3/32 in
BrandTb Woods
Bushing RequiredNone
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.00
Constructionweb
Current Stock397
CX Pitch DiameterNot Applicable
Datum diameter2.6
Dimension0.44
Face Width0.66 in
Face width0.66
Face width (in)0.66
Fits Shaft Dia.5/8 in
For Belt Trade Size3L, 4L, A, AX
For V-Belt Section3L, 4L, A, AX
For V-Belt TypeClassical, Cogged
Groove cross section se.A
Hub location-0.44
Hub location (in)-0.44
I.D.2.48
Industry NumberAK2858
Inertia WR?1
Inside diameter (in)2.48
International ShippingNo
ItemStandard V-Belt Pulley
Keyway Depth3/32 in
Keyway Size0.187" x 0.093"
Keyway Size Type0.187 in x 0.093 in
Keyway Width3/16 in
Length through Bore15/16 in
MaterialCast Iron
Material FabricationCast
Material typeCI
Max RPM8780
Maximum Bore Diameter1 in
MpnAK2858
Number of Grooves1
Number of grooves1
Number of Steps1
O.D.2.85
Outer Diameter2.85 in
Outside Diameter2.85 in
Outside diameter (in)2.85
Overall Width1 1/8 in
Pitch diameter2.85
Pitch Diameter2.85 in
Pitch Diameter for V-Be.3L: 2.51 in / 4L: 2.85 .
Pulley Bore Dia.5/8 in
Pulley Bore TypeFixed Bore
Pulley ConstructionWebbed
Pulley MaterialCast Iron
Pulley Outside Dia.2.85 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit8780
SeriesFHP AK Series
Set Screw IncludedYes
SKUZO-G2056205
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672091121
UPC Code698672091121

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG20562058.691535Tb Woods0.688.69 @ 1
thumbzoombscsource.comAK285812.391In StockTB Wood's12.39 @ 1
thumbzoomsimsupply.comZO-G205620516.81397Tb Woods16.8 @ 1
AmazonTPB01BGWWYTU17.391In Stock3Tb Wood's Incorporated17.39 @ 1
thumbzoomsustainablesupply.comC169304622.011In StockTB Wood's0.6822.01 @ 1
thumbzoomNational Supply Network8222322323.491In StockTB Wood's23.49 @ 1
thumbzoomMRO Supply34769024.153In StockTB Woods24.15 @ 3
us.rs-online.com7167038127.3213TB Wood's (Altra)27.32 @ 1
thumbzoomRaptor SuppliesAE6FKN28.4477311In StockTB WOODS28.447731 @ 1
