TB Woods L090N

mpnL090N
brandname: TB Woods
manufacturername: TB Woods

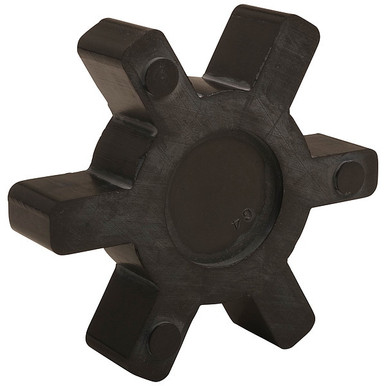

L-Jaw Coupling Insert, L090/L095, Buna N

L-Jaw Coupling Insert, L090/L095, Buna N

zoom

Brand: TB Woods
PartNumber: L090N
Model: L090/L095-N
Color: Black
PackageQuantity: 1
Binding: Misc.
Manufacturer: Tb Wood'S
Label: Tb Wood'S

Attributes

Key	Value
Accommodates	1 Degrees Angular and .
Brand	Tb Woods
c	0.5
Center hole	Solid
Chemical resistance	Poor
Color	Black
Coupling Size	L090/L095
Coupling size	L090
Current Stock	42
Dimension (in.) (OD)	2.100
Element durometer	80A
Element material	Buna-N
Element thickness	1
Element type	Solid Center Spider
Flexibility	Excellent
Height (In.)	0.44 in
Horsepower Rating at 10.	41
HP Rating @ 100 RPM	0.23 with AL/SS/L090 hu.
HP Rating @ 1200 RPM	2.8/3.7
HP Rating @ 1800 RPM	4.1/5.5
HP Rating @ 300 RPM	0.7/0.9
HP Rating @ 3600 RPM	8.3/11
International Shipping	No
Item - Jaw Coupling Spi.	Jaw Coupling Insert
Jaw type	Straight
Length (In.)	2.1 in
ltb	0.81
material	Buna-N Spider
Material	Nitrile (Buna-N)
Material - Spiders	Buna N
Material type	Buna-N, Black
Max angular misalignment	1?
max bore	1
Max compatible bore size	1
Max parallel misalignme.	0.015
max rpm	9000
Max speed	9000
Max. Bore (In.)	1.000/1.125
Max. RPM	9,000 RPM
Max. Torque (In.-Lbs.)	144/194
Min compatible bore size	0.25
Mpn	L090N
O.D.	2.1
oal	2.13
od	2.11
Oil resistance	Good
Outside Diameter	2 3/32 in
Power rating at 100 RPM	0.23 (HP) with AL/SS/L0.
Product family	L-Jaw Spider
Rated Torque	144 in-lb
Serviceable Temp. Range.	-40 to 212
Size	L090
Size - Jaw Couplings	L090/L095
Size code	90
SKU	ZO-G3346314
Spider Width	0.44 in
SubCategory	Power Transmission
Temp. Range	-40 Degrees to 212 Deg.
Temperature rating	-40?F to 212?F
Thickness	0.435
Thickness (in)	0.435
Torque	16 (Nm) with AL/SS/L090.
Torque (In.-Lbs.)	144/194
torque in lbs	144
Torsional stiffness	Soft
Type	Buna N Spider, Spider -.
UPC	698672000062
UPC Code	698672000062
Width (In.)	2.1 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Grainger	1X407	8.09	1	2148	0	TB WOOD'S		8.09 @ 5
	Zoro	G3346314	8.19	1	2468		Tb Woods	0.04	8.19 @ 5
	MRO Supply	336529	8.39	8	5		TB Woods		8.39 @ 8
	sustainablesupply.com	C1662730	9.94	1	5		TB Wood's	0.04	9.94 @ 5
	AmazonTP	B0713MFWS8	10.82	1	5	2	TB Woods		10.82 @ 5
	us.rs-online.com	71655345	11.14	1	5		TB Wood's (Altra)		11.14 @ 5
	motionindustries.com	00516352	13.59	1	5		TB Woods (Altra)		13.59 @ 5
	simsupply.com	ZO-G3346314	15.35	1	42		Tb Woods		15.35 @ 5
	Raptor Supplies	AB4CVN	17.542395	1	5		TB WOOD'S		17.542395 @ 5
