mpn:
brand:
manufacturer:
MPN:
Description:

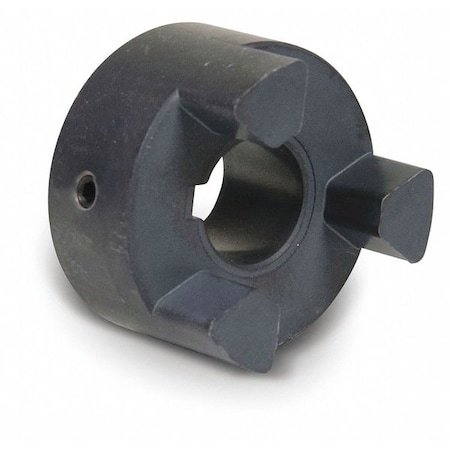

Jaw Coupling Hub, Coupling Size L110, Outside Diameter 85 mm, Coupling Overall Length 107 mm, System of Measurement Metric, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 1.3 hp (Buna-N Spider), 2.0 hp (Urethane Spider), 3.6 hp (Hytrel Spider), Keyway Depth 2.8 mm, Keyway Width 6 mm, Bore Diameter 19 mm, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Compatible Center Element Manufacturer Part Number L110H, L110N, L110U
Attributes
| Key ^ | Value |
|---|---|
| Assembled Coupling Length, Overall Length | 107 mm |
| Bore Dia. | 19 mm |
| Item, Item - Jaw Coupling Hubs | Jaw Coupling Hub |
| Keyway Size, Keyway Size Type | 6mm x 2.8mm |
| Material, Material - Hubs | Sintered Iron |
| Outside Dia. | 84 mm |
| Package Quantity | 1 |
| Size, Size - Jaw Couplings | L110 |
