TB Woods L190N

mpnL190N
brandname: TB Woods
manufacturername: TB Woods

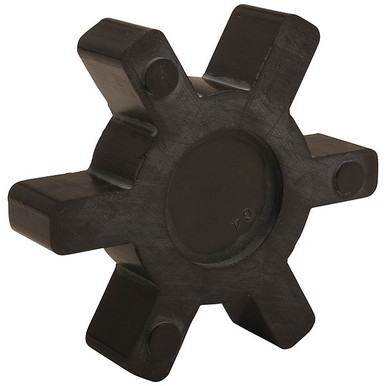

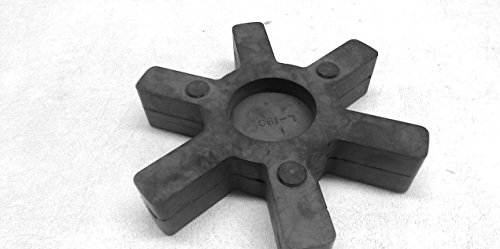

Jaw Coupling Insert,Buna N,L190

Jaw Coupling Insert,Buna N,L190

zoom

Brand: TB Woods
PartNumber: L190N
Model: L190 Buna-N
PackageQuantity: 1
Binding: Misc.
Manufacturer: Tb Wood'S
Label: Tb Wood'S

Attributes

Key	Value
Accommodates	1 Degrees Angular and .
Brand	Tb Woods
c	1
Center hole	Solid
Chemical resistance	Poor
Color	Black
Coupling Size	L190
Coupling size	L190
Current Stock	97
Dimension (in.) (OD)	4.470
Element durometer	80A
Element material	Buna-N
Element thickness	1
Element type	Solid Center Spider
Flexibility	Excellent
hd	4
Height (In.)	0.88 in
Horsepower Rating at 10.	53
HP Rating @ 100 RPM	2.70
HP Rating @ 1200 RPM	32
HP Rating @ 1800 RPM	49
HP Rating @ 300 RPM	8.1
HP Rating @ 3600 RPM	98
International Shipping	No
Item	Buna N Spider Insert
Item - Jaw Coupling Spi.	Jaw Coupling Insert
Jaw type	Straight
Length (In.)	4.47 in
ltb	1.94
material	Buna-N Spider
Material - Spiders	Buna N
Material type	Buna-N, Black
Max angular misalignment	1?
max bore	2-1/8
Max compatible bore size	2.125
Max parallel misalignme.	0.015
max rpm	5000
Max speed	5000
Max. Bore (In.)	2.125
Max. RPM	5,000 RPM
Max. Torque (In.-Lbs.)	1726
Min compatible bore size	0.75
Mpn	L190N
O.D.	4.47
oal	4.88
od	4.5
Oil resistance	Good
Outside Diameter	4 15/32 in
Overall length	4.88
Power rating at 100 RPM	2.7 HP
Product family	L-Jaw Spider
Prop 65	Warning: This product c.
Rated Torque	1,726 in-lb
Serviceable Temp. Range.	-40 to 212
Size - Jaw Couplings	L190
Size code	190
SKU	ZO-G1980736
Spider Width	0.88 in
SubCategory	Power Transmission
Temp. Range	-40 Degrees to 212 Deg.
Temperature rating	-40?F to 212?F
Thickness	0.875
Thickness (in)	0.875
Torque	195 Nm
Torque (In.-Lbs.)	1726
torque in lbs	1726
Torsional stiffness	Soft
Type	Buna N Spider
UPC	698672000109
Width (In.)	4.47 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1980736	32.49	1	167		Tb Woods	0.3	32.49 @ 1
	Grainger	1A928	32.8	1	114	0	TB WOOD'S		32.8 @ 1
	MRO Supply	340154	35.57	2	In Stock		TB Woods		35.57 @ 2
	simsupply.com	ZO-G1980736	44.42	1	97		Tb Woods		44.42 @ 1
	sustainablesupply.com	C1659950	45.17	1	In Stock		TB Wood's	0.3	45.17 @ 1
	AmazonTP	B071L8DLX2	50.41	1	In Stock	2	TB WOOD'S		50.41 @ 1
	Raptor Supplies	AA8TYM	71.912646	1	In Stock		TB WOOD'S		71.912646 @ 1
