TB Woods L225N

mpnL225N
brandname: TB Woods
manufacturername: TB Woods

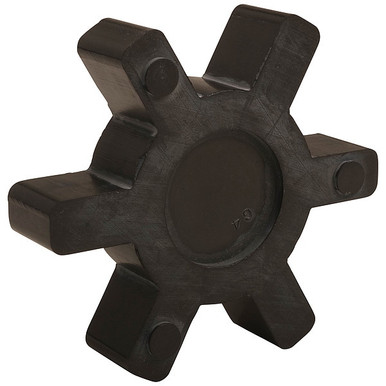

TB WOOD'S L225N BUNA-N SPIDER FACTORY NEW!

TB WOOD

zoom

Brand: TB Woods
PartNumber: L225N
Color: Black
PackageQuantity: 1
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Accommodates	1 Degrees Angular and .
Brand	Tb Woods
c	1
Center hole	Solid
Chemical resistance	Poor
Color	Black
Coupling Size	L225
Coupling size	L225
Current Stock	42
Dimension (in.) (OD)	4.970
Element durometer	80A
Element material	Buna-N
Element thickness	1
Element type	Solid Center Spider
Flexibility	Excellent
hd	4.25
Height (In.)	0.88 in
Horsepower Rating at 10.	56
HP Rating @ 100 RPM	3.70
HP Rating @ 1200 RPM	44
HP Rating @ 1800 RPM	67
HP Rating @ 300 RPM	11
HP Rating @ 3600 RPM	133
International Shipping	No
Item	Buna N Spider Insert
Item - Jaw Coupling Spi.	Jaw Coupling Insert
Jaw type	Straight
Length (In.)	4.97 in
ltb	2.19
Material	Nitrile (Buna-N)
material	Buna-N Spider
Material - Spiders	Buna N
Material type	Buna-N, Black
Max angular misalignment	1?
max bore	2-5/8
Max compatible bore size	2.625
Max parallel misalignme.	0.015
max rpm	4600
Max speed	4600
Max. Bore (In.)	2.625
Max. RPM	4,600 RPM
Max. Torque (In.-Lbs.)	2340
Min compatible bore size	0.75
Mpn	L225N
O.D.	4.97
oal	5.38
od	5
Oil resistance	Good
Overall length	5.38
Power rating at 100 RPM	3.7 HP
Product family	L-Jaw Spider
Prop 65	Warning: This product c.
Rated Torque	2,340 in-lb
Serviceable Temp. Range.	-40 to 212
Shaft Dia. Range (In.)	3/4 to 2 5/8
Size	L225
Size - Jaw Couplings	L225
Size code	225
SKU	ZO-G0332166
SubCategory	Power Transmission
Temp. Range	-40 Degrees to 212 Deg.
Temperature rating	-40?F to 212?F
Thickness	0.875
Thickness (in)	0.875
Torque	264 Nm
Torque (In.-Lbs.)	2340
torque in lbs	2340
Torsional stiffness	Soft
Type	Buna N Spider, Spider .
UPC	698672000116
UPC Code	698672000116
Width (In.)	4.97 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonTP	B01N2NVJJG	38.82	1	In Stock	2	TB Woods		38.82 @ 1
	MRO Supply	339381	45.44	2	In Stock		TB Woods		45.44 @ 2
	Zoro	G0332166	46.89	1	206		Tb Woods	0.39	46.89 @ 1
	sustainablesupply.com	C1679665	48.04	1	In Stock		TB Wood's	0.39	48.04 @ 1
	us.rs-online.com	71655374	58.0	1	2		TB Wood's (Altra)		58.0 @ 1
	Grainger	3EMN9	58.64	1	In Stock		TB WOOD'S		58.64 @ 1
	simsupply.com	ZO-G0332166	61.46	1	42		Tb Woods		61.46 @ 1
	Raptor Supplies	AC8XHE	93.276378	1	In Stock		TB WOOD'S		93.276378 @ 1
