| Alternate Mfr Part Number | JWS5028/A |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Category | Power Supplies - External/Internal (Off-Board) |
| Configuration, Type | Enclosed |
| Current - Output 1, Output Current | 2 A |
| Efficiency | 79% |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Input Voltage Range | 85-265 VAC |
| Line Regulation | 112 mV |
| Load Regulation | 160 mV |
| Mfr | TDK-Lambda Americas Inc |
| Minimum Load Required, Voltage - Output 2, Voltage - Output 3, Voltage - Output 4, Voltage - Output 6 | - |
| Mounting Type | Panel Mount, Chassis Mount |
| Number of Outputs | 1, 1 Output |
| Operating Frequency | 63 Hz |
| Operating Temperature | -10?C ~ 60?C (With Derating), -10 to 50 ?C |
| Operation | PFC |
| Output Power | 56 W |
| Output Voltage | 28 VDC |
| Package | Bulk |
| Power (Watts) | 50W |
| Primary Type | AC-DC |

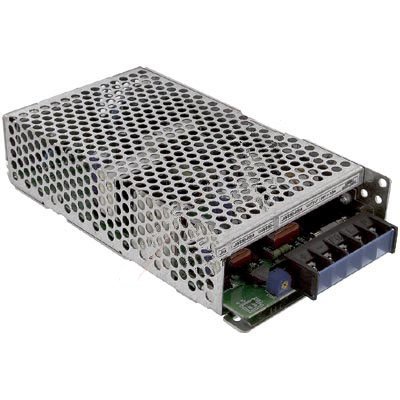

| Product Header | JWS Series Industrial Power Supply |
| Product Status | Obsolete |
| Series | JWS Series, JWS (50W) |
| Size / Dimension | 6.25" L x 3.35" W x 1.45" H (158.8mm x 85.1mm x 36.8mm) |
| Special Features | Parallelable ; Remote On-Off ; Remote Sense |
| Standards | UL Listed, CSA Certified, EN60950, VDE Approved, CE Approved, Built to Meet DENTORI |
| Type | Embedded |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 28V |
