TE Connectivity

B00KI3K838

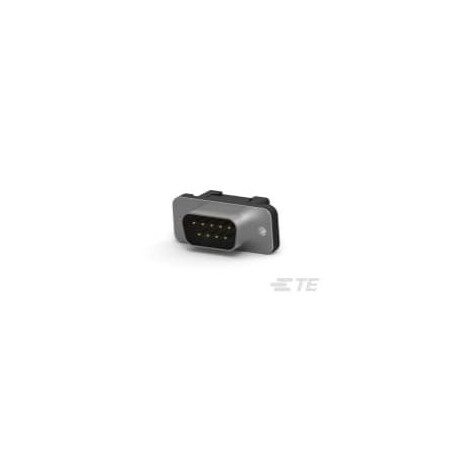

TE Connectivity 1658608-4 Standard Cable Connectors

TE Connectivity 1658608-4 Standard Cable Connectorszoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Part No.571-1658608-4
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number1658608
BrandTE Connectivity / AMP
Cable Insulation Diamet..81 ? .97?mm?[?.032 ? ..
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.109?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector StylePlug, D-Sub
Connector SystemCable-to-Cable
Connector TypePlug, Male Pins
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1.25
Contact FinishGold
Contact Finish Thickness-
Contact Form-
Contact MaterialPhosphor Bronze
Contact PlatingGold Over Nickel, Gold
Contact Size20
Contact TypeSignal
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating1.25 A
Current Rating (Amps)1.25A
DescriptionCONN D-SUB PLUG 9POS IDC
Detailed Description9 Position D-Sub Plug, .
Dielectric MaterialThermoplastic
Digi-Key Part NumberAML09B-ND
EnclosureWithout
FeaturesFeed Through, Grounding.
Flange FeatureHousing/Shell (4-40)
GenderMale
Housing MaterialThermoplastic
Ingress Protection-
Insert MaterialBrass
Insulation Diameter0.032-0.038 "
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1658608-4
Manufacturer Product Nu.1658608-4
Manufacturer Standard L.13 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Threaded Insert, 4-40 U.
Mating HardwareThreaded Inserts
MfrTE Connectivity AMP Con.
Mounting StyleWire
Mounting TypeFree Hanging (In-Line)
Number of Contacts9
Number of Positions9
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageBulk
PCB Contact Termination.Tin
PCB Mount Retention TypeNone
PreloadedYes
Primary TypeD-Ribbon
Product CategoryD-Sub Standard Connecto.
Product StatusActive
SealableNo
SeriesHDF-20 Series, HDF-20, .
Shell MaterialSteel, Front Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell PlatingTin
Shell Size1
Shell Size, Connector L.1 (DE, E)
Shell TypeFront Metal Shell
ShieldedYes
Solid Wire Size28 ? 26, .1 ? .13
Special FeaturesStrain Relief
StandardsUL94 V-0
TerminationIDC, Ribbon Cable, IDC/.
Termination Method to W.Insulation Displacement.
Termination StyleCrimp
TypeCable Plug
Voltage Rating250 V, -
Wire Gauge26-28 AWG, Stranded or .
Wire Size28 ? 26, 26-28 AWG, .08.
Wire/Cable TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1658608-43.68403116TE CONNECTIVITY/AMP BRAND3.68 @ 40
us.rs-online.com700430464.4312488TE Connectivity4.43 @ 5
Avnet1658608-44.467401270TE Connectivity4.467 @ 40
Hawk Electronics1658608-45.0535TE Connectivity5.05 @ 5
thumbzoomZoroG8009794805.39405Te Connectivity5.39 @ 40
TE Connectivity1658608-46.433114127TE Connectivity (TE)6.4331 @ 5
thumbzoomNewark42K66446.6812197AMP - TE CONNECTIVITY6.68 @ 5
thumbzoomCarlton Bates Company741149930006.9315TE CONNECTIVITY6.93 @ 5
thumbzoomDigi-Key8253849.70811474TE Connectivity AMP Connectors9.708 @ 5
thumbzoomswatee.com1658608-412.1411157TE Connectivity12.14 @ 5
RS Delivers680-775615.012173TE Connectivity15.012 @ 5
AmazonTPB00KSO1RQO15.02152TE Connectivity15.02 @ 5
