mpn:
brand:
manufacturer:
MPN:
Description:

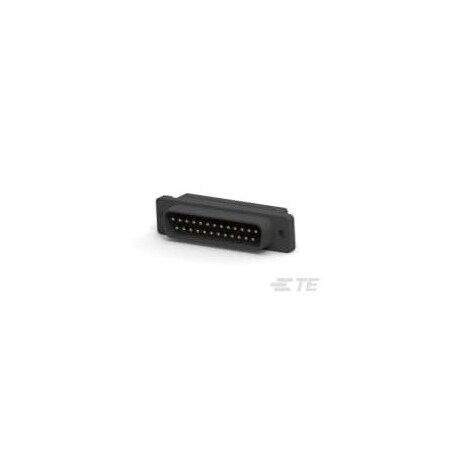

Conn D-Ribbon Cable Plug 25Pos STR HDF-20Series IDC 28-26AWG PlasticShell
Weight:
0.044
Weight:
0.044 LB
Preferred Price:
14.9
Price:
14.9
Min Simple Price:
7.35
Absolute Min Price:
11.15
Min Price:
11.15
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
NjI5OA:::1658615-2
sku:
NjI5OA::WK:1658615-2@y0
condition:
11
seller:
Waldom
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | UL Recognized ; UL Listed and CSA Certified |
| Angle | Straight |
| Application | Commercial |
| Backset Spacing, Contact Finish Thickness, Contact Form, Ingress Protection, Shell Material, Finish, Voltage Rating | - |
| Base Product Number | 1658615 |
| Cable Insulation Diameter | .81 ? .97?mm?[?.032 ? .038?in?] |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 2.77?mm?[?.0545?in?] |
| Circuit Application, Contact Type | Signal |
| Color | Black |
| Connector | Wire & Cable |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Style | Plug, D-Sub |
| Connector System | Cable-to-Cable |
| Connector Type | Plug, Male Pins |
| Contact Base Material, Contact Material | Phosphor Bronze |
| Contact Current Rating (Max) | 1.25 |
| Contact Finish | Gold |
| Contact Plating | Gold Over Nickel |
| Contact Size | 20 |
| Contact Underplating Material | Nickel |
| Country of Origin (subject to change) | China |
| Current Rating | 1.25 A |
| Current Rating (Amps) | 1.25A |
| Description | CONN D-SUB PLUG 25POS IDC |
| Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Dielectric Material, Housing Material | Thermoplastic |
| Digi-Key Part Number | AMS25B-ND |
| Enclosure | Without |
| Features | Feed Through |
| Flange Feature | Housing/Shell (Unthreaded) |
| Insulation Diameter | 0.032-0.038 " |
| Manufacturer Product Number | 1658615-2 |
| Manufacturer Standard Lead Time | 13 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material Flammability Rating, Standards | UL94 V-0 |
| Mating Connector Lock | With |
| Mating Connector Lock Type | Threaded Insert, 4-40 UNC |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts, Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 105?C |
| Operating Temperature Range | -55 ? 105??C?[?-67 ? 221??F?] |
| Package | Bulk |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Retention Type | None |
| Preloaded, Shielded | Yes |
| Primary Type | D-Ribbon |
| Product Status | Active |
| Sealable | No |
| Series | AMPLIMITE HDF-20, HDF-20 Series |
| Shell Material | All Plastic Shell |
| Shell Size | 3 |
| Shell Size, Connector Layout | 3 (DB, B) |
| Shell Type | All Plastic |
| Solid Wire Size | .1 ? .13 |
| Solid Wire Size, Wire Size | 28 ? 26 |
| Special Features | Strain Relief |
| Termination | IDC, Ribbon Cable, IDC/Ribbon Cable |
| Termination Method to Wire | Insulation Displacement Crimp (IDC) |
| Type | Cable Plug |
| Voltage Rating | 250 V |
| Wire Gauge | 26-28 AWG, Stranded or Solid |
| Wire Size | .08 ? .15, 26-28 AWG |
| Wire/Cable Type | Ribbon Cable |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | TE CONNECTIVITY AMP BRAND 1658615-2 | 7.35 | 122.01 | 40 | 275 | TE CONNECTIVITY/AMP BRAND | 7.35 @ Qty: 40+ | |||
| Onlinecomponents.com | 1658615-2 | 7.85 | 7.85 | 1 | 3955 | TE Connectivity / AMP Brand | 7.85 @ Qty: 1+ | |||
 | NEP Electronics | 1658615-2 | 7.9315 | 131.6629 | 40 | 195 | TE Connectivity | 7.9315 @ Qty: 40+ | ||
 | Newark | 42K6665 | 8.86 | 1422.916 | 400 | In Stock | AMP - TE CONNECTIVITY | 8.86 @ Qty: 250+ | ||
 | Zoro | G101008957 | 9.0 | 149.4 | 40 | In Stock | Te Connectivity | 9.0 @ Qty: 40+ | ||
| Future Electronics | 1691310 | 9.276 | 1489.7256 | 400 | In Stock | TE Connectivity | 9.276 @ Qty: 400+ | |||
 | Carlton Bates Company | 74114919249 | 9.89 | 9.89 | 1 | In Stock | TE CONNECTIVITY | 9.89 @ Qty: 1+ | ||
| TE Connectivity | 1658615-2 | 12.3458 | 12.3458 | 1 | 474 | TE Connectivity (TE) | 12.3458 @ Qty: 1+ | |||
 | Digi-Key | 825395 | 12.816 | 12.816 | 1 | 840 | TE Connectivity AMP Connectors | 12.816 @ Qty: 1+ | ||
| us.rs-online.com | 70041272 | 14.87 | 14.87 | 1 | 197 | TE Connectivity | 14.87 @ Qty: 1+ | |||
| RS Delivers | 409-3220 | 14.88 | 14.88 | 1 | 36 | TE Connectivity | 14.88 @ Qty: 1+ | |||
| TME | 1658615-2 | 25.08 | 25.08 | 1 | In Stock | TE Connectivity | 25.08 @ Qty: 1+ |
