mpn:
brand:
manufacturer:
MPN:
Description:

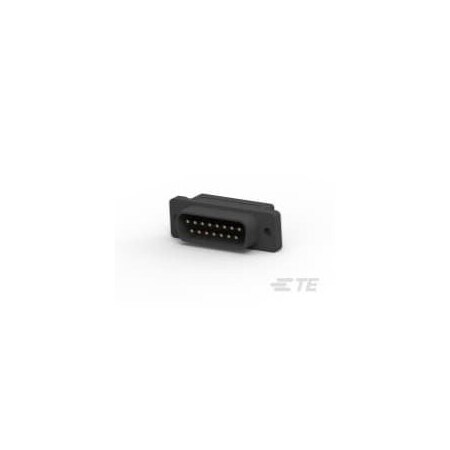

Conn D-Ribbon Cable Plug 15Pos STR HDF-20Series IDC 28-26AWG PlasticShell
Weight:
0.004
Weight:
0.044 LB
Preferred Price:
30.88
Price:
30.88
Min Simple Price:
3.37
Absolute Min Price:
23.97
Min Price:
23.97
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
NjI5OA:::1658615-3
sku:
NjI5OA::RI:1658615-3@x5
condition:
11
seller:
Hawk Electronics
amzMan:
te connectivity / amp
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | UL Recognized ; UL Listed and CSA Certified |
| Angle | Straight |
| Application | Commercial |
| Cable Insulation Diameter | .81 ? .97?mm?[?.032 ? .038?in?] |
| Centerline (Pitch) | 2.77?mm?[?.0545?in?] |
| Circuit Application | Signal |
| Connector | Wire & Cable |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Style | Plug |
| Connector System | Cable-to-Cable |
| Contact Base Material, Contact Material | Phosphor Bronze |
| Contact Current Rating (Max) | 1.25 |
| Contact Plating | Gold Over Nickel |
| Contact Size | 20 |
| Contact Underplating Material | Nickel |
| Country of Origin (subject to change) | China |
| Current Rating | 1.25 A |
| Enclosure | Without |
| Housing Material | Thermoplastic |
| Insulation Diameter | 0.032-0.038 " |
| Mating Connector Lock | With |
| Mating Connector Lock Type | Threaded Insert, 4-40 UNC |
| Number of Contacts, Number of Positions | 15 |
| Number of Rows, Shell Size | 2 |
| Operating Temperature Range | -55 ? 105??C?[?-67 ? 221??F?] |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Retention Type | None |
| Preloaded, Shielded | Yes |
| Primary Type | D-Ribbon |
| Sealable | No |
| Series | HDF-20 Series |
| Shell Material | All Plastic Shell |
| Shell Type | All Plastic |
| Solid Wire Size | .1 ? .13 |
| Solid Wire Size, Wire Size | 28 ? 26 |
| Special Features | Strain Relief |
| Standards | UL94 V-0 |
| Termination | IDC/Ribbon Cable |
| Termination Method to Wire | Insulation Displacement Crimp (IDC) |
| Type | Cable Plug |
| Voltage Rating | 250 V |
| Wire Size | .08 ? .15, 26-28 AWG |
| Wire/Cable Type | Ribbon Cable |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Hawk Electronics | 1658615-3 | 3.19 | 20.416 | 1 | 10 | TE Connectivity | 3.19 @ Qty: 10+ | |||
| Waldom | TE CONNECTIVITY 1658615-3 | 4.99 | 429.14 | 200 | 10 | TE Connectivity | 4.99 @ Qty: 10+ | |||
| Onlinecomponents.com | 1658615-3 | 5.48 | 35.072 | 1 | 757 | TE Connectivity / AMP Brand | 5.48 @ Qty: 10+ | |||
| Newark | 76AC1903 | 6.29 | 138.38 | 40 | 371 | AMP - TE CONNECTIVITY | 6.29 @ Qty: 25+ | |||
 | TME | 1658615-3 | 8.4 | 53.76 | 1 | 37 | TE Connectivity | 8.4 @ Qty: 10+ | ||
| Future Electronics | 2228427 | 8.424 | 1398.384 | 400 | 10 | TE Connectivity | 8.424 @ Qty: 400+ | |||
| TE Connectivity | 1658615-3 | 8.688 | 55.6032 | 1 | 532 | TE Connectivity (TE) | 8.688 @ Qty: 10+ | |||
 | Zoro | G301037160 | 8.82 | 194.04 | 40 | 10 | Te Connectivity | 8.82 @ Qty: 40+ | ||
| RS Delivers | 409-3214 | 9.288 | 59.4432 | 1 | 10 | TE Connectivity | 9.288 @ Qty: 10+ | |||
| us.rs-online.com | 70041267 | 9.76 | 62.464 | 1 | 120 | TE Connectivity | 9.76 @ Qty: 10+ | |||
| AmazonTP | B00KSNRFA2 | 21.66 | 138.624 | 1 | 10 | 2 | TE Connectivity | 21.66 @ Qty: 10+ | ||
| AmazonSC | B00KSNRFA2 | 24.68 | 157.952 | 1 | 10 | TE Connectivity | 24.68 @ Qty: 10+ |
