1658622-3

B00LQQVO48

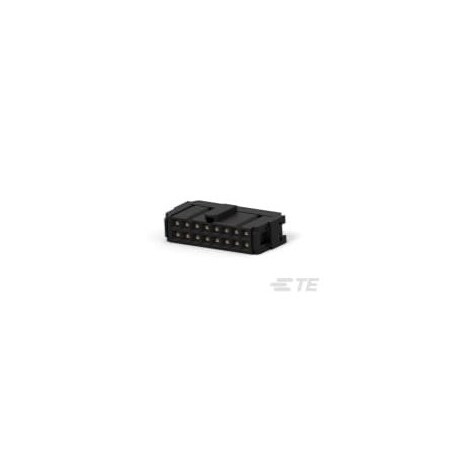

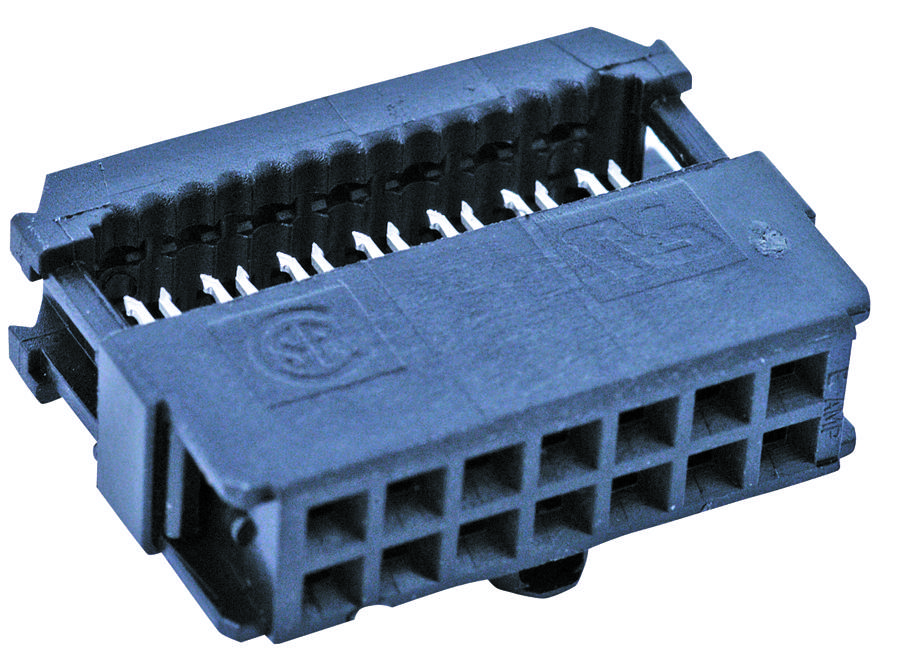

TE CONNECTIVITY / AMP 1658622-3 WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM (10 pieces)

TE CONNECTIVITY / AMP 1658622-3 WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM (10 pieces)zoom

Attributes

Key Value
Agency ApprovalsCSA ; UL
AngleStraight
ApplicationSignal
Base Product Number1658622
Cable TerminationIDC
CategoryConnectors, Interconnec.
ColorBlack
Connection MaterialPhosphor Bronze
Connector Terminates ToWire & Cable
Connector TypeReceptacle
Contact FinishGold or Gold-Palladium
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialPhosphor Bronze
Contact PlatingGold Over Nickel
Contact Plating Thickne.0.76 ?m
Contact TypeForked, Socket
Current Rating1 A
DescriptionCONN RCPT 16POS IDC 26-.
Detailed Description16 Position Rectangular.
Digi-Key Part NumberAKC16B-ND
Fastening Type-
FeaturesFeed Through, Polarizin.
Flammability RatingUL 94 V-0
Height15.16 mm
Hole Center to Center2.54 mm
Housing MaterialThermoplastic
ItemConnector
Length24.89 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658622-3
Manufacturer Standard L.16 Weeks
MaterialThermoplastic
Max. Insulation Dia.0.94 mm
Max. Single Wire Size26 AWG
Max. Temp.105?C
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Min. Single Wire Size28 AWG
Mounting TypeFree Hanging (In-Line)
Number of Contacts16
Number of Positions16
Number of Rows2
Operating Temperature-55 to +105 ?C
Overall Length0.98 "
PackageBulk
Pin Spacing0.1 in
Pitch0.100" (2.54mm), 2.54 m.
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Row Spacing0.100" (2.54mm)
SeriesAMP-Latch, AMP-LATCH NO.
Special FeaturesMilitary Polarized
StandardsCSA Certified; UL E2847.
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder; .
TerminationIDC
TypeReceptacle
Width0.2949 in
Wire Gauge26-28 AWG
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet1658622-30.94114141TE Connectivity0.941 @ 25
Hawk Electronics1658622-31.08125TE Connectivity1.08 @ 25
Onlinecomponents.com1658622-31.1316321TE Connectivity / AMP Brand1.13 @ 25
WaldomTE CONNECTIVITY AMP BRAND 1658622-31.25025TE CONNECTIVITY/AMP BRAND1.2 @ 50
thumbzoomCarlton Bates Company741149968921.29125TE CONNECTIVITY1.29 @ 25
Future Electronics55458501.44900025TE Connectivity1.44 @ 9000
thumbzoomNewark73K62211.9817772AMP - TE CONNECTIVITY1.98 @ 25
thumbzoomDigi-Key8254132.1883214768TE Connectivity AMP Connectors2.18832 @ 25
us.rs-online.com700427772.6211168TE Connectivity2.62 @ 25
RS Delivers719-8785P2.77214386TE Connectivity2.772 @ 25
AmazonTPB00LQQW0LO66.971252TE CONNECTIVITY / AMP66.97 @ 25
thumbzoomZoroG90104097399.5125Te Connectivity99.5 @ 25
