Description:

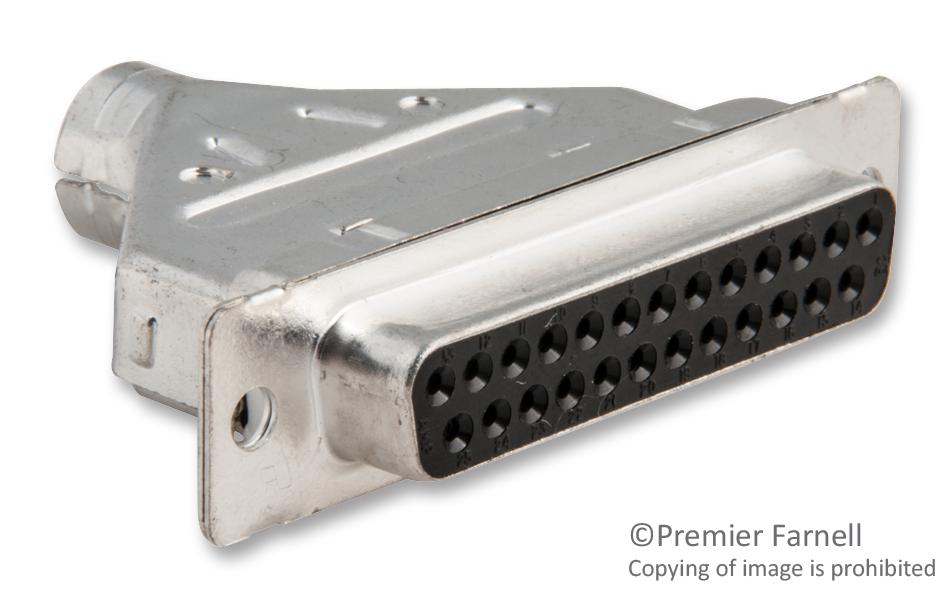

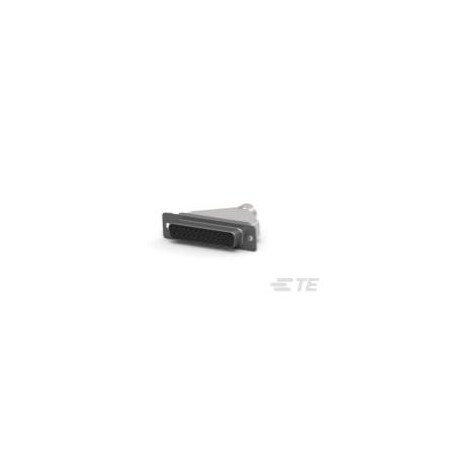

Conn D-Subminiature SKT 25 POS 2.76mm Crimp ST Cable Mount 25 Terminal 1 Port Kit/Package
Attributes
| Key | Value |
|---|---|
| Agency Approvals | UL Recognized ; UL Listed and CSA Certified |
| Angle | Straight |
| Application | Commercial |
| Cable Diameter | 0.35 " |
| Centerline (Pitch) | 2.76?mm?[?.109?in?] |
| Circuit Application | Signal |
| Connector | Wire & Cable |
| Connector Style | Receptacle |
| Connector System | Cable-to-Cable |
| Contact Size | 20 |
| Country of Origin (subject to change) | United States |
| Housing Material | Nylon |
| Insert Material | Thermoplastic |
| Insulation Diameter | 0.165-0.455 " |
| Mating Connector Lock | With |
| Mating Connector Lock Type | Mounting Holes |
| Number of Contacts | 25 |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature Range | -55 ? 105??C?[?-67 ? 221??F?] |
| Primary Type | D-Sub |
| Sealable | No |
| Series | HDP20 Series |
| Shell Material | Full Metal Shell |
| Shell Size | 3 |
| Shell Type | Full Metal Shell |
| Shield Material | Steel |
| Shielded | Yes |
| Special Features | Shielded |
| Standards | UL94 V-0 |
| Termination | Crimp |
| Type | Cable Socket |
| Voltage Rating | 250 V |
| Wire Size | 20 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Hotenda | H1190353 | 4.02 | 61.908 | 1 | 25 | TE Connectivity AMP Connectors | 4.02 @ Qty: 25+ | |||
| TE Connectivity | 1658649-1 | 4.3344 | 66.74976 | 1 | 98 | TE Connectivity (TE) | 4.3344 @ Qty: 25+ | |||
 | Newark | 42K6678 | 4.72 | 448.4 | 200 | 25 | AMP - TE CONNECTIVITY | 4.72 @ Qty: 200+ | ||
| Waldom | TE CONNECTIVITY AMP BRAND 1658649-1 | 6.24 | 118.56 | 10 | 190 | TE CONNECTIVITY/AMP BRAND | 6.24 @ Qty: 25+ | |||
| Onlinecomponents.com | 1658649-1 | 6.5 | 107.9 | 4 | 1224 | TE Connectivity | 6.5 @ Qty: 25+ | |||
| us.rs-online.com | 70084278 | 8.06 | 124.124 | 1 | 25 | TE Connectivity | 8.06 @ Qty: 25+ | |||
| RS Delivers | 719-9132 | 8.472 | 130.4688 | 1 | 38 | TE Connectivity | 8.472 @ Qty: 25+ | |||
 | Zoro | G001017110 | 9.09 | 139.986 | 1 | 25 | Te Connectivity | 9.09 @ Qty: 25+ |
