TE Connectivity 1658676-1

B00KSO30EG

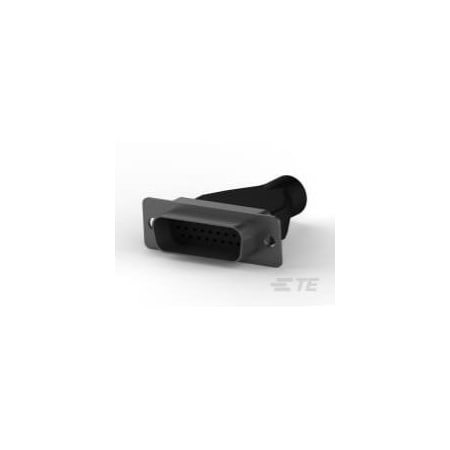

TE Connectivity Part Number 1658676-1

TE Connectivity Part Number 1658676-1zoom

Attributes

Key Value
AngleStraight
Base Product Number1658676
CategoryConnectors, Interconnec.
Centerline (Pitch)2.28?mm?[?.09?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable
Connector StylePlug, D-Sub, High Densi.
Connector SystemCable-to-Cable
Connector TypePlug for Male Contacts
Contact Size22
Contact TypeSignal
Country of Origin (subj.United States
DescriptionCONN D-SUB HD HOUSING P.
Detailed DescriptionPlug for Male Contacts .
Dielectric MaterialPolyamide (PA), Nylon, .
Digi-Key Part NumberA31502-ND
FeaturesGrounding Indents, Shie.
Flange FeatureHousing/Shell (Unthread.
Housing MaterialMetal
Ingress Protection-
Insert MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658676-1
Manufacturer Standard L.38 Weeks
Mating Connector LockWith
Mating Connector Lock T.Mounting Holes
Mating Cycles-
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Contacts26
Number of Positions26
Number of Rows3
Operating Temperature-
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageBulk
Primary TypeD-Sub
Product StatusActive
SealableNo
SeriesAMPLIMITE HDP-22, HDP-2.
Shell Finish Thickness200?in (5.08?m)
Shell MaterialFull Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell Size2
Shell Size, Connector L.2 (DA, A) High Density
Shell TypeFull Metal Shell
Shield MaterialSteel
ShieldedYes
Special FeaturesShielded
StandardsUL94 V-0
TerminationCrimp
TypeCable Plug
Wire Size22 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1658676-17.2110246TE CONNECTIVITY/AMP BRAND7.21 @ 10
Onlinecomponents.com1658676-17.611665TE Connectivity / AMP Brand7.6 @ 10
thumbzoomDigi-Key7696467.6881579TE Connectivity AMP Connectors7.688 @ 10
HotendaH11903728.931200TE Connectivity AMP Connectors8.93 @ 10
TE Connectivity1658676-19.439661807TE Connectivity (TE)9.43966 @ 10
Future Electronics513380610.3820010TE Connectivity10.38 @ 200
Newark76AC193312.913790AMP - TE CONNECTIVITY12.9 @ 10
thumbzoomZoroG60103750115.71110Te Connectivity15.71 @ 10
us.rs-online.com7004135015.81114TE Connectivity15.81 @ 10
