mpn:
brand:
manufacturer:
MPN:
Preferred Price:
37.33
Price:
37.33
Min Simple Price:
4.08
Absolute Min Price:
28.96
Min Price:
28.96
qty:
1
simpleSku:
NjI5OA:::1-1734100-0
sku:
NjI5OA::V0:1-1734100-0@x5
condition:
11
seller:
Verical
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Assembly Process Feature | None |
| Base Product Number | 1734100 |
| Board-to-Board Configuration | Vertical |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 1.27?mm?[?.05?in?] |
| Circuit Application | Signal |
| Connector | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector Profile | Standard |
| Connector Style | Center Strip Contacts |
| Connector System | Board-to-Board |
| Connector Type | Plug |
| Contact Base Material | Phosphor Bronze |
| Contact Current Rating (Max) | 1 |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Mating Area Plating Material | Gold Flash |
| Contact Mating Area Plating Material Finish | Matte |
| Contact Mating Area Plating Material Thickness | .76??m?[?30??in?] |
| Contact Shape | Square |
| Contact Type | Pin |
| Country of Origin (subject to change) | China |

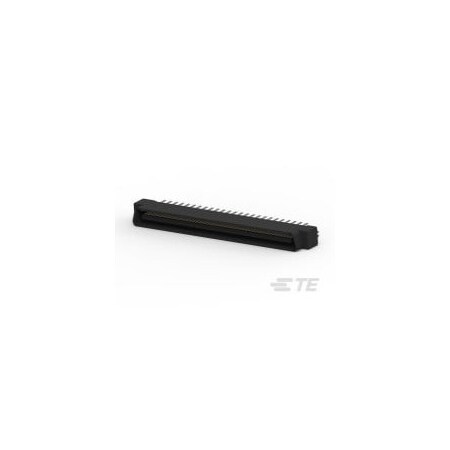

| Description | CONN BTB PLUG 100POS VERT SOLDER |
| Detailed Description | 100 Position Plug Connector Board to Board Through Hole Solder |
| Digi-Key Part Number | A33459-ND |
| Features | Board Lock |
| Flange Feature | - |
| Housing Material | Matte |
| Manufacturer | TE Connectivity AMP Connectors |
| Manufacturer Product Number | 1-1734100-0 |
| Manufacturer Standard Lead Time | 4 Weeks |
| Mating Alignment | With |
| Mating Alignment Type | Guide Post |
| Mfr | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Number of Positions | 100 |
| Number of Rows | 2, 4 |
| Operating Temperature Range | -55 ? 105??C?[?-67 ? 221??F?] |
| Package | Bag |
| Packaging Method | Tube |
| Packaging Quantity | 54 |
| PCB Connector Assembly Type | PCB Mount Header |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Contact Termination Area Plating Material Finish | Matte |
| PCB Mount Alignment | With |
| PCB Mount Orientation | Vertical |
| PCB Mount Retention | With |
| PCB Mount Retention Type | Boardlock, Retention Leg |
| PCB Thickness (Recommended) | .8 ? 1.6?mm?[?.76?in?] |
| Product Status | Active |
| Row-to-Row Spacing | 1.904?mm?[?.0748?in?] |
| Sealable | No |
| Series | CHAMP .050 I |
| Stackable | No |
| Termination | Solder |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Termination Post | 2.54?mm?[?.1?in?] |
| Type | Board to Board |
| UL Flammability Rating | UL 94V-0 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Verical | 1-1734100-0 | 4.08 | 210.528 | 54 | 5994 | TE Connectivity | 4.08 @ Qty: 54+ | |||
| Onlinecomponents.com | 1-1734100-0 | 4.22 | 115.216 | 1 | 10180 | TE Connectivity / AMP Brand | 3.79 @ Qty: 54+ | |||
| TE Connectivity | 1-1734100-0 | 5.00178 | 152.054112 | 1 | 1387 | TE Connectivity (TE) | 5.00178 @ Qty: 50+ | |||
| Hotenda | H742356 | 5.14 | 156.256 | 1 | 50 | TE Connectivity AMP Connectors | 5.14 @ Qty: 50+ | |||
| Newark | 40AJ9614 | 6.86 | 2576.616 | 864 | 540 | AMP - TE CONNECTIVITY | 6.86 @ Qty: 864+ | |||
 | Digi-Key | 1121328 | 8.48568 | 257.964672 | 1 | 1634 | TE Connectivity AMP Connectors | 8.48568 @ Qty: 50+ | ||
| AmazonTP | B07KTFSX3R | 55.89 | 1699.056 | 1 | 50 | 5 | TE Connectivity / AMP Brand | 55.89 @ Qty: 50+ | ||
 | Zoro | G801041148 | 5374.08 | 2018504.448 | 864 | 50 | Te Connectivity | 5374.08 @ Qty: 864+ |
