Description:

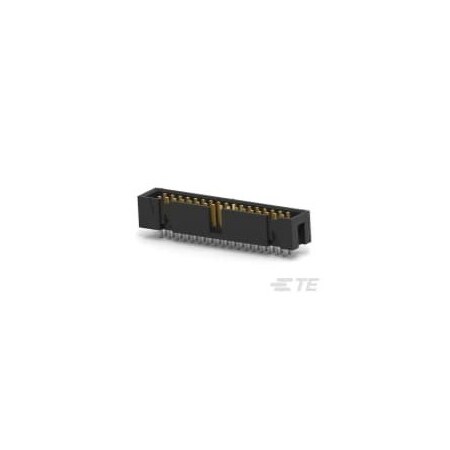

Board Connector, 34 Contact(S), 2 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, Black Insulator, Plug
Attributes
| Key | Value |
|---|---|
| Application | Signal |
| Color | Black |
| Connection Material | Phosphor Bronze |
| Connector Terminates To | Printed Circuit Board |
| Connector Type | Header |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 15 ?in |
| Contact Type | Pin |
| Current Rating | 1 A |
| Features | With Daisy Chain |
| Flammability Rating | UL 94 V-0 |
| For Use With | AMP-Latch Receptacle |
| Height | 8.89 mm |
| Hole Center to Center | 2.54 mm |
| Item | Connector |
| Length | 50.8 mm |
| Material | PCT |
| Max. Temp. | 105?C |
| Max. Voltage | 250V AC |
| Number of Contacts | 34 |
| Number of Rows | 2 |
| Package Quantity | 1 |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
