mpn:
brand:
manufacturer:
MPN:
Description:

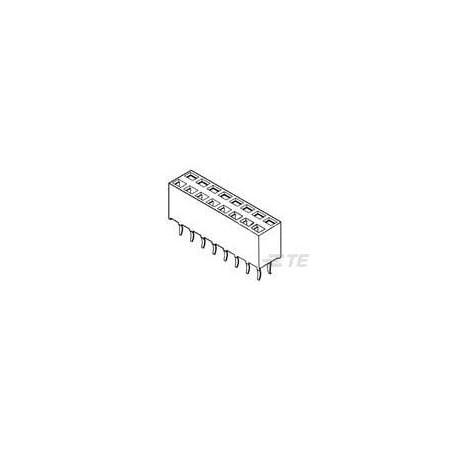

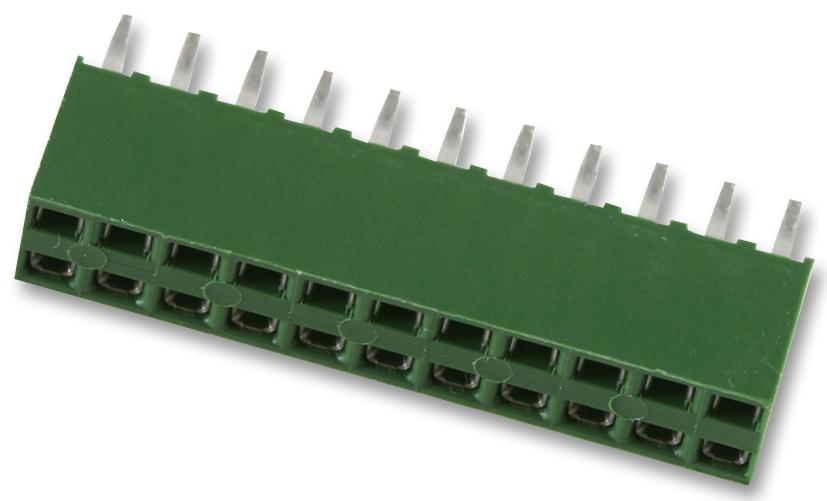

PCB Socket, 2.54mm, 20 Way 2 Row, Strip, AMPMODU HV-100 Series
Preferred Price:
12.73
Price:
12.73
Min Simple Price:
1.236
Absolute Min Price:
9.57
Min Price:
9.57
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
NjI5OA:::1-215307-0
sku:
NjI5OA::5U:1-215307-0@x5
condition:
11
seller:
Future Electronics
amzMan:
te connectivity / amp
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Alternate Mfr Part Number | 4958701 |
| Applications | - |
| Base Product Number | 215307 |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 2.54?mm?[?.1?in?] |
| Color | Green |
| Connection Material | Phosphor Bronze |
| Connector | Printed Circuit Board, socket |
| Connector Height | 7?mm?[?.276?in?] |
| Connector pinout layout | 2x10 |
| Connector Profile | Standard |
| Connector series | HV-100 |
| Connector Style | Receptacle |
| Connector Terminates To | Printed Circuit Board |
| Connector Type | Connector Assembly, Receptacle |
| Contact Base Material | Phosphor Bronze |
| Contact Current Rating (Max) | 3 |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 31.5?in (0.80?m) |
| Contact Finish Thickness - Post | 98.4?in (2.50?m) |
| Contact Length - Post | 0.122" (3.10mm) |
| Contact Material | Phosphor Bronze |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 30 |
| Contact plating | gold-plated |
| Contact Plating Thickness | 30 ?in |
| Contact Shape | Square |
| Contact Type | socket, Female Socket |
| Contacts pitch | 2.54mm |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Description | CONN RCPT 20POS 0.1 GOLD PCB |
| Detailed Description | 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Digi-Key Part Number | A106616-ND |
| Electrical mounting | THT |
| Family Name | AMPMODU Interconnect System |
| Fastening Type | Push-Pull |
| Features | - |
| Flammability Rating | UL 94 V-0 |
| For Use With | Header Assembly |
| Height | 7 mm[.276 in], 7mm, 7 mm |
| Hole Center to Center | 2.54 mm |
| Housing Color | Green |
| Housing Material | Polyester - GF |
| Ingress Protection | - |
| Insulation Color | Black or Green |
| Insulation Height | 0.276" (7.00mm) |
| Insulation Material | Polyester, Glass Filled |
| Item | PCB Mount Receptacle |
| Kind of connector | female |
| Leads dimensions | L 3.1mm |
| Manufacturer | TE Connectivity AMP Connectors, TE Connectivity |
| Manufacturer Product Number | 1-215307-0 |
| Manufacturer Standard Lead Time | 34 Weeks |
| Mated Stacking Heights | - |
| Material | Glass-Filled Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mating Entry Location | Top |
| Max. Temp. | 125?C |
| Mfr | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Number of Contacts | 10 |
| Number of pins | 20 |
| Number of Positions | 10, 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | - |
| Operating Temperature Range | -65 ? 125, -55 ? 105 |
| Package | Tray |
| Package Quantity | 1 |
| Packaging Quantity | 72 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Orientation | Vertical |
| PCB Mount Retention | With |
| PCB Mount Retention Type | Retention Solder Tails |
| PCB Thickness (Recommended) | 1.6 |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Product Type | Connector |
| Profile | Standard |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Row to Row Spacing | 2.54 mm |
| Row-to-Row Spacing | 2.54 |
| Sealable | No |
| Series | AMPMODU, HV-100, AMPMODU HV-100 / HV-190 Series, AMPMODU HV-100 |
| Spatial orientation | straight |
| Stackable | Yes |
| Style | Board to Board |
| Tail Length | 3.1 mm[.122 in] |
| Temperature Operating Range | -65 ? 125 ?C,-55 ? 105 ?C |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole - Solder |
| Termination | Kinked Pin, Solder |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Termination Post | 3.1?mm?[?.122?in?] |
| Type of connector | pin strips |
| UL Flammability Rating | UL 94V-0 |
| Voltage Rating | - |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Future Electronics | 1210095 | 1.236 | 36.3384 | 72 | 720 | TE Connectivity | 1.236 @ Qty: 72+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 1-215307-0 | 1.48 | 43.512 | 72 | 134 | TE CONNECTIVITY/AMP BRAND | 1.48 @ Qty: 72+ | |||
 | Newark | 98K4867 | 2.12 | 2.12 | 1 | 1550 | AMP - TE CONNECTIVITY | 2.12 @ Qty: 1+ | ||
 | Digi-Key | 2055845 | 2.12 | 2.12 | 1 | 3249 | TE Connectivity AMP Connectors | 2.12 @ Qty: 1+ | ||
| Onlinecomponents.com | 1-215307-0 | 2.267 | 10.4282 | 10 | 576 | TE Connectivity | 2.267 @ Qty: 10+ | |||
| RS Delivers | 495-8701 | 2.5764 | 2.5764 | 1 | 100 | TE Connectivity | 2.5764 @ Qty: 1+ | |||
 | TME | 1-215307-0 | 2.58 | 2.58 | 1 | 997 | TE Connectivity | 2.58 @ Qty: 1+ | ||
| TE Connectivity | 1-215307-0 | 2.737 | 2.737 | 1 | 716 | TE Connectivity (TE) | 2.737 @ Qty: 1+ | |||
| us.rs-online.com | 70283475 | 3.38 | 15.548 | 10 | 29 | TE Connectivity | 3.38 @ Qty: 10+ | |||
| AmazonTP | B011O9X6A6 | 11.09 | 11.09 | 1 | 29 | 5 | TE Connectivity / AMP | 11.09 @ Qty: 1+ | ||
| AmazonSC | B07KWHRDNZ | 57.73 | 57.73 | 1 | 29 | TE Connectivity / AMP | 57.73 @ Qty: 1+ | |||
 | Zoro | G801040851 | 176.4 | 176.4 | 1 | In Stock | Te Connectivity | 176.4 @ Qty: 1+ |
