TE CONNECTIVITY / CORCOM 25AYA6A

B00HKI8SV8

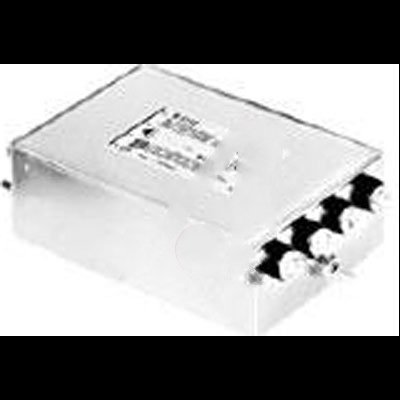

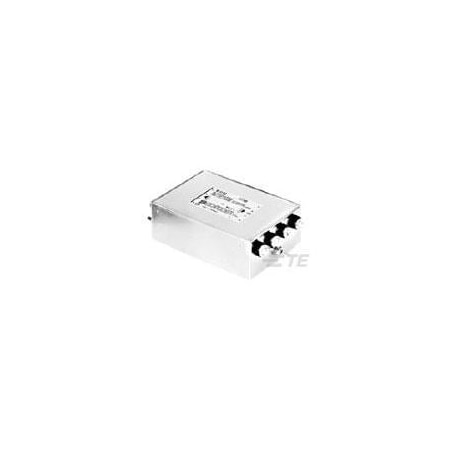

TE Connectivity 25AYA6A Filter, Power Line; 440 VAC; 25 A; UL Recognized

TE Connectivity 25AYA6A Filter, Power Line; 440 VAC; 25 A; UL Recognizedzoom

Attributes

Key Value
Alternate Mfr Part Numb.6609977-2
ApplicationsGeneral Purpose
Approval AgencyUR
CategoryFilters
ConfigurationSingle Stage
Country of Origin (subj.United States
Current25 A
Current Rating25, 25 A
DescriptionLINE FILTER 25A CHASSIS.
Detailed DescriptionThree Phase (Wye) EMC/E.
Digi-Key Part NumberCCM2204-ND
Dimensions50 H x 111 W x 201 L mm
Filter TypeThree Phase (Wye), EMC .
FilteredYes
Frequency - Operating50/60Hz
Inductance-
Input TypeStud
Leakage Current (Max) (.2.82
Line to Ground Hipot Ra.1500
Line to Line Hipot Rati.1450 VDC
ManufacturerTE Connectivity Corcom .
Manufacturer Product Nu.25AYA6A
Manufacturer Standard L.37 Weeks
MfrTE Connectivity Corcom .
Mounting TypePanel Mount, Chassis Mo.
Operating Temperature-10?C ~ 40?C
Operating Temperature R.-10 ? 40
Operating Voltage480 V
Output TypeStud
PackageBulk
Phase3 Phase
Primary TypeAC
Product HeaderEMI/RFI Filter
Product StatusActive
SeriesAYA, Corcom AYA Series
Termination StyleThreaded Post (8-32)
TypeFilter
Voltage (Max)440
Voltage - Rated AC-
Voltage - Rated AC (Pha.250 V
Voltage - Rated AC (Pha.440 V
Voltage - Rated DC-
Voltage Rating480 V
Wiring ConfigurationWYE (4 wire + ground)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Allied Electronics71334525163.786In StockTE Connectivity163.78 @ 6
AmazonTPB00HKI8SV8165.231In Stock2TE Connectivity / Corcom Brand165.23 @ 1
us.rs-online.com70185739209.546In StockTE Connectivity209.54 @ 6
thumbzoomDigi-Key759789229.8144TE Connectivity Corcom Filters229.8 @ 1
RS Delivers881-3891P246.16811TE Connectivity246.168 @ 1
WaldomTE CONNECTIVITY CORCOM 25AYA6A251.5623TE CONNECTIVITY / CORCOM251.56 @ 1
TE Connectivity6609977-2252.356129TE Connectivity (TE)252.356 @ 1
Newark75AC9906252.8433AMP - TE CONNECTIVITY252.84 @ 3
thumbzoomZoroG601037662317.583In StockTe Connectivity317.58 @ 3
Onlinecomponents.com6609977-2461.03115TE Connectivity / AMP Brand163.92 @ 3
