mpn:
brand:
manufacturer:
MPN:
Description:

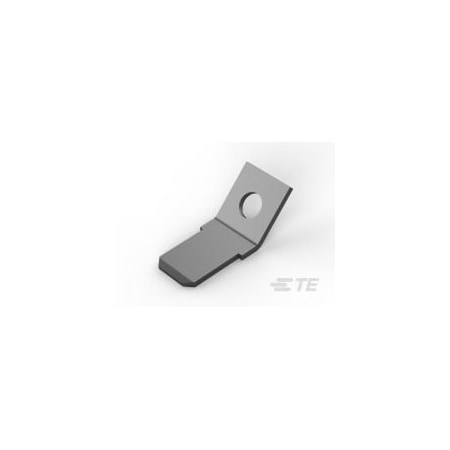

Crimp Receptacle, QC Tabs, 45deg Stud Mount, Tin Plated, FASTON 250 Series
Preferred Price:
142.74
Price:
142.74
Min Simple Price:
0.078
Absolute Min Price:
110.76
Min Price:
110.76
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
NjI5OA:::42822-2
sku:
NjI5OA::UW:42822-2@y3
condition:
11
seller:
Onlinecomponents.com
amzMan:
te connectivity / amp
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Mfr Part Number | 42822-2 |
| Base Product Number | 42822 |
| Category | Connectors, Interconnects |
| Color | Green |
| Color, Features, Insulation Diameter, Length - Overall, Tab Length, Wire Gauge | - |
| Contact Finish, Plating Material | Tin |
| Contact Material, Contact material, Underplating Material | Brass |
| Contact plating | tinned |
| Contact size | 6.3x0.8mm, |
| Country of Origin (subject to change) | United States |
| Family Name | FASTON Family |
| Gender, Kind of terminal | Male |
| Hole for screw | M3 |
| Insulation | Non-Insulated |
| Manufacturer | TE Connectivity |
| Mating Tab Thickness | .81?mm?[?.032?in?] |
| Mating Tab Width | 6.35?mm?[?.25?in?] |
| Mechanical mounting | screw |
| Mfr | TE Connectivity AMP Connectors |
| Mounting hole diameter | 3.3mm |
| Mounting Style | Stud Mount |
| Mounting Type | Board, Chassis |
| Operating Temperature Range | -30 ? 110??C?[?-22 ? 230??F?] |
| Package | Bulk |
| Packaging Method | Bag |
| PCB Hole Diameter | 3.68?mm?[?.145?in?] |
| Product Status | Active |
| Receptacle Terminal Stock Thickness | .78?mm?[?.031?in?] |
| Series | Faston, FASTON 250 Series |
| Spatial orientation | angled 45? |
| Stud Diameter | 3.3?mm?[?.13?in?] |
| Stud Hole | Yes |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Terminal Angle | 45? |
| Terminal Orientation | Straight |
| Terminal Size | 6.35 |
| Terminal Type | Angled - 45? |
| Terminal, Terminal Type | Tab |
| Terminates To | Printed Circuit Board |
| Termination | Screw, Rivet, Stud |
| Termination Method | Through Hole |
| Thickness | 0.8mm |
| Type of terminal | flat |
| Width | 6.3mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 42822-2 | 0.102 | 15.3408 | 1 | 2536 | TE Connectivity / AMP Brand | 0.102 @ Qty: 250+ | |||
| Hotenda | H1644529 | 0.10452 | 15.719808 | 1 | 17306 | TE Connectivity AMP Connectors | 0.10452 @ Qty: 250+ | |||
| TE Connectivity | 42822-2 | 0.128 | 19.2512 | 1 | 8750 | TE Connectivity (TE) | 0.128 @ Qty: 250+ | |||
| Digi-Key | 298076 | 0.14012 | 21.074048 | 1 | 70367 | TE Connectivity AMP Connectors | 0.14012 @ Qty: 250+ | |||
 | NEP Electronics | 42822-2 | 0.1438 | 79.09 | 1000 | 4000 | TE Connectivity | 0.1438 @ Qty: 1000+ | ||
 | Newark | 69W0881 | 0.153 | 29.07 | 100 | 5800 | AMP - TE CONNECTIVITY | 0.153 @ Qty: 250+ | ||
| RS Delivers | 719-7209 | 0.1692 | 25.44768 | 1 | 6100 | TE Connectivity | 0.1692 @ Qty: 250+ | |||
 | Zoro | G100941477 | 0.17 | 29.036 | 52 | 250 | Te Connectivity | 0.17 @ Qty: 250+ | ||
 | TME | 42822-2 | 0.198 | 30.492 | 10 | 798 | TE Connectivity | 0.198 @ Qty: 250+ | ||
| us.rs-online.com | 70087266 | 0.22618 | 34.017472 | 1 | 1814 | TE Connectivity | 0.22618 @ Qty: 250+ | |||
| AmazonTP | B00FRBJS8M | 5.99 | 900.896 | 1 | 250 | 2 | T-E Connectivity | 5.99 @ Qty: 250+ | ||
| AmazonSC | B07FCCLJ6T | 22.88 | 3441.152 | 1 | 250 | TE Connectivity | 22.88 @ Qty: 250+ |
