TE CONNECTIVITY / BUCHANAN 528-AG11D-LF

B00GFFH7GO

T-E Connectivity 528-AG11D-LF (1 pc) 500 DIP,PCB,AU/SN

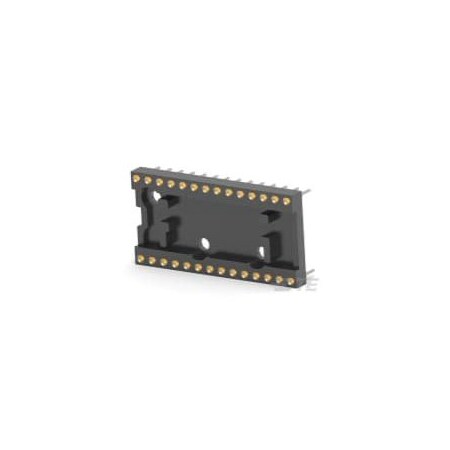

T-E Connectivity 528-AG11D-LF (1 pc) 500 DIP,PCB,AU/SNzoom

Attributes

Key Value
Alternate Mfr Part Numb.2-1571550-9
Alternate Part No.571-2-1571550-9
ApplicationSignal
Base Product Number1571550
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
ColorBlack
Connection MaterialBeryllium Copper
Connector Terminates ToPrinted Circuit Board
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thicknes.25.0?in (0.63?m)
Contact Finish Thicknes.25.0?in (0.63?m)
Contact Material - Mati.Beryllium Copper
Contact Material - PostBeryllium Copper
Contact PlatingGold
Contact Plating Thickne.25 ?in
Contact Resistance10mOhm
Contact TypePin
Current Rating3 A
DescriptionCONN IC DIP SOCKET 28PO.
Detailed Description28 (2 x 14) Pos DIP, 0..
Digi-Key Part Number2-1571550-9-ND
Family NameAlcoswitch DIP Family
FeaturesClosed Frame
Flammability RatingUL 94 V-0
Hole Center to Center2.54 mm
Housing MaterialPolycyclohexylenedimeth.
ItemSocket
Length1.4 in
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.2-1571550-9
Manufacturer Product Nu.2-1571550-9
MaterialThermoplastic
Material Flammability R.UL94 V-0
Max. Temp.105?C
MfrTE Connectivity AMP Con.
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Contacts28
Number of Positions28
Number of Positions or .28 (2 x 14)
Number of Rows2
Operating Temperature-55?C ~ 125?C
PackageTube
Package Quantity1
PackagingTube
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Pitch - Post0.100" (2.54mm)
Primary TypeDIP
ProductDIP / SIP Sockets
Product CategoryIC & Component Sockets
Product StatusObsolete
Series500 Series, 500
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
Termination Post Length0.125" (3.18mm)
TypeDIP, 0.6" (15.24mm) Row.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY BUCHANAN 528-AG11D-LF4.761527TE CONNECTIVITY / BUCHANAN4.76 @ 15
us.rs-online.com703464317.5334In StockTE Connectivity7.53 @ 34
HotendaH14883388.311In StockTE Connectivity AMP Connectors8.31 @ 1
Mouser571-2-1571550-98.82138TE Connectivity8.82 @ 1
thumbzoomDigi-Key225889610.42817TE Connectivity AMP Connectors10.42 @ 8
thumbzoomswatee.com2-1571550-910.78130TE Connectivity10.78 @ 1
Onlinecomponents.com528-AG11D-LF11.2717313TE Connectivity11.27 @ 17
thumbzoomZoroG20104209779.121In StockTe Connectivity79.12 @ 1
