TE Connectivity / AMP 5-102202-9

B083ZNR4HY

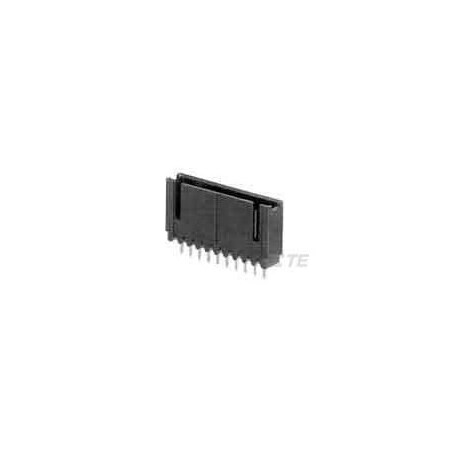

5-102202-9, Assembly, MOD II, Header, Single Row .100 C/L, Vertical, with .025 Square Posts (25 Items)

5-102202-9, Assembly, MOD II, Header, Single Row .100 C/L, Vertical, with .025 Square Posts (25 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.5-102202-9
Alternate Part No.571-5-102202-9
Applications-
Base Product Number102202
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialCopper Alloy, Brass
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN HEADER VERT 12POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA32995-ND
Family NameAMPMODU Interconnect Sy.
Fastening TypePush-Pull
Features-
Flammability RatingUL 94 V-0
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.549" (13.94mm)
Insulation MaterialThermoplastic
Insulation Resistance5000 MOhms
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5-102202-9
Manufacturer Product Nu.5-102202-9
Manufacturer Standard L.18 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating Post Length6.1 mm
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Contacts12
Number of Positions12
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 105?C
Operating Temperature R.- 55 C to + 105 C
Overall Contact Length0.589" (14.96mm)
PackageTube
Package Quantity1
PackagingTube
Pitch2.54 mm, 2.54 mm (0.100.
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating-
SeriesAMPMODU Mod II Series, .
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Termination Post Length3.3 mm
Termination StyleThrough Hole
TradenameAMPMODU
TypeHeader, Shrouded
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5-102202-91.6412302TE Connectivity / AMP Brand1.64 @ 25
thumbzoomDigi-Key10930662.17839666667115225TE Connectivity AMP Connectors2.17839666667 @ 1152
us.rs-online.com702836492.2125TE Connectivity2.2 @ 25
Newark73P99612.47115225TE CONNECTIVITY2.47 @ 1000
thumbzoomZoroG2009398792.99115225Te Connectivity2.99 @ 1152
Future Electronics79344663.312115225TE Connectivity2.58 @ 32
thumbzoomswatee.com5-102202-94.47125TE Connectivity4.47 @ 25
