TE Connectivity 5-102203-9

B096T3SZ3D

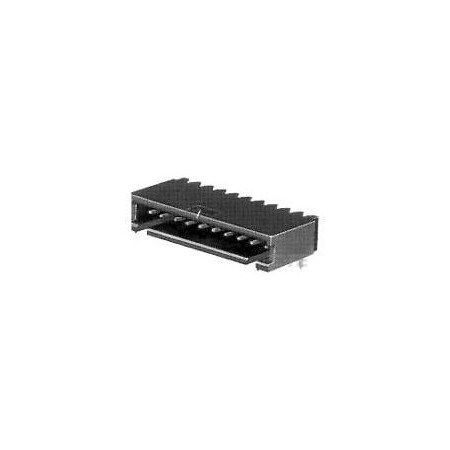

Conn Shrouded Header (4 Sides) HDR 12 POS 2.54mm Solder RA Side Entry Thru-Hole Tube

Conn Shrouded Header (4 Sides) HDR 12 POS 2.54mm Solder RA Side Entry Thru-Hole Tubezoom

Attributes

Key Value
Alternate Part No.571-5-102203-9
Applications-
Base Product Number102203
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.110" (2.79mm)
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.Mexico
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN HEADER R/A 12POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA33025-ND
Fastening TypePush-Pull
Features-
Flammability RatingUL 94 V-0
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.214" (5.44mm)
Insulation MaterialThermoplastic
Insulation Resistance5000 MOhms
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5-102203-9
Manufacturer Product Nu.5-102203-9
Manufacturer Standard L.18 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating Post Length6.1 mm
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Positions12
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 105?C
Operating Temperature R.- 55 C to + 105 C
Overall Contact Length-
PackageTube
PackagingTube
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating-
SeriesAMPMODU MOD II
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Termination Post Length2.79 mm
Termination StyleThrough Hole
TradenameAMPMODU
TypeShrouded
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5-102203-92.4132332TE CONNECTIVITY/AMP BRAND2.41 @ 32
us.rs-online.com720476033.0115210TE Connectivity3.0 @ 1152
Newark22R43933.25115210TE CONNECTIVITY3.25 @ 1000
thumbzoomswatee.com5-102203-93.31990TE Connectivity3.3 @ 10
thumbzoomZoroG9009397283.8357610Te Connectivity3.83 @ 576
thumbzoomDigi-Key10930964.0571966TE Connectivity AMP Connectors4.057 @ 10
Onlinecomponents.com5-102203-94.2311315TE Connectivity / AMP Brand4.23 @ 10
Future Electronics67214354.332115210TE Connectivity4.332 @ 1152
AmazonSCB07KWJYYPD34.34110TE Connectivity / AMP34.34 @ 10
