| Applications, Features, Ingress Protection, Row Spacing - Mating | - |
| Base Product Number | 104192 |
| Category | Connectors, Interconnects |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30.0?in (0.76?m) |
| Contact Finish Thickness - Post | 150.0?in (3.81?m) |
| Contact Length - Post | 0.100" (2.54mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Country of Origin (subject to change) | Mexico |
| Current Rating (Amps) | 1A |
| Description | CONN RCPT 10POS 0.05 GOLD PCB |

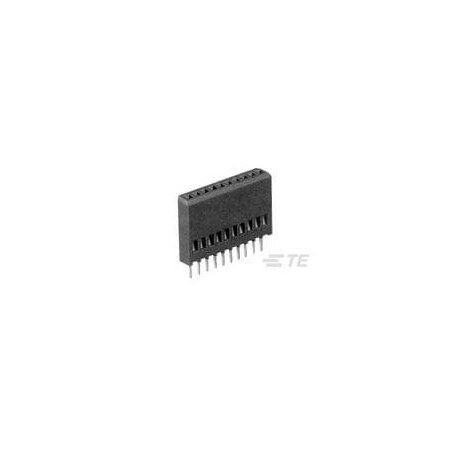

| Detailed Description | 10 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Digi-Key Part Number | A115239-ND |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.350" (8.89mm) |
| Insulation Material | Thermoplastic, Glass Filled |
| Manufacturer Product Number | 5-104192-2 |
| Manufacturer Standard Lead Time | 29 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Mated Stacking Heights | 11.43mm, 12.57mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature | -65?C ~ 105?C |
| Package | Tube |
| Pitch - Mating | 0.050" (1.27mm) |
| Product Status | Active |
| Series | AMPMODU System 50 |
| Style | Board to Board |
| Termination | Solder |
| Voltage Rating | 30VAC |
