5-747913-2

B00LQR6I0C

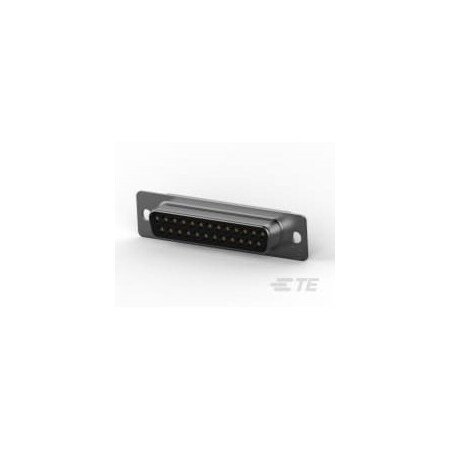

TE CONNECTIVITY / AMP 5-747913-2 D SUB CONNECTOR, STANDARD, 25POS, RCPT (100 pieces)

TE CONNECTIVITY / AMP 5-747913-2 D SUB CONNECTOR, STANDARD, 25POS, RCPT (100 pieces)zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Mfr Part Numb.5-747913-2
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number747913
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.11?in?]
Circuit ApplicationSignal
ColorBlack
Connectorplug, Printed Circuit B.
Connector Mounting TypeBoard Mount
Connector seriesHD 20
Connector StyleD-Sub, Receptacle
Connector SystemCable-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact ConfigurationSolder Cup
Contact Current Rating .3
Contact FinishGold
Contact Finish Thickness8.00?in (0.203?m)
Contact Form-
Contact MaterialBrass, Phosphor Bronze
Contact Mating Area Pla.Gold Flash
Contact Mating Area Pla..8
Contact PlatingGold Flash
Contact platingGold Flash
Contact Size20
Contact TypeSignal, Socket
Contact Underplating Ma.Nickel
Country of Origin (subj.United States
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN D-SUB RCPT 25POS S.
Detailed Description25 Position D-Sub Recep.
Dielectric MaterialPolybutylene Terephthal.
Digi-Key Part NumberA32508-ND
Electrical mountingsoldering
EnclosureWithout
Features-
Flange FeatureHousing/Shell (Unthread.
GradeStandard
Grounding IndentsWithout
Housing FinishTin
Ingress Protection-
Insert Flammability Rat.UL 94V-0
Insert MaterialThermoplastic
Kind of connectorfemale
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5-747913-2
Manufacturer Standard L.4 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Mounting Holes
Mechanical mountingfor cable
MfrTE Connectivity AMP Con.
Mounting AngleStraight
Mounting TypeFree Hanging (In-Line)
Number of Contacts25
Number of pins25
Number of Positions25
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTray
Packaging MethodTray
PCB Contact Termination.Tin-Copper
PCB Mount Retention TypeNone
PreloadedYes
Primary TypeD-Sub
Product StatusActive
Product TypeConnector
SealableNo
SeriesHD-20 Series, AMPLIMITE.
Shell MaterialSteel, Full Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell Plating MaterialTin
Shell Size3
Shell Size, Connector L.3 (DB, B)
Shell TypeFull Metal Shell
ShieldedYes
StandardsUL94 V-0
TerminationSolder, Solder Cup
Termination Method to W.Solder
TypeCable Socket
Type of connectorD-Sub
UL Flammability RatingUL 94V-0
Voltage Rating250V, 250 V
Wire Gauge-
Wire Size.5 ? .6, 20, 20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Hawk Electronics5-747913-22.9915TE Connectivity2.99 @ 5
Avnet5-747913-23.167501962TE Connectivity3.167 @ 50
WaldomTE CONNECTIVITY AMP BRAND 5-747913-23.68158451TE CONNECTIVITY/AMP BRAND3.68 @ 15
Onlinecomponents.com5-747913-24.314885TE Connectivity / AMP Brand4.3 @ 5
TE Connectivity5-747913-25.0779211351TE Connectivity (TE)5.07792 @ 5
thumbzoomTME5-747913-25.1505TE Connectivity5.1 @ 50
thumbzoomNewark79K34985.361689AMP - TE CONNECTIVITY5.36 @ 5
Future Electronics43953496.15610005TE Connectivity6.156 @ 1000
thumbzoomZoroG1010448496.8125Te Connectivity6.81 @ 5
us.rs-online.com700416308.281190TE Connectivity8.28 @ 5
thumbzoomDigi-Key10149008.49613795TE Connectivity AMP Connectors8.496 @ 5
RS Delivers489-25009.34321350TE Connectivity9.3432 @ 5
