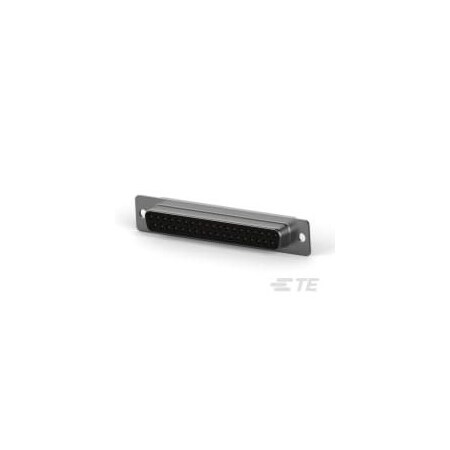

D-Sub Standard Connectors 37P SOCKET TIN (100 pieces)

D-Sub Standard Connectors 37P SOCKET TIN (100 pieces)zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Mfr Part Numb.5-747917-2
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number747917
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.11?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleD-Sub, Receptacle
Connector SystemCable-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact ConfigurationSolder Cup
Contact Current Rating .3
Contact FinishGold
Contact Finish Thickness8.00?in (0.203?m)
Contact Form-
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold Flash
Contact Size20
Contact TypeSignal
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN D-SUB RCPT 37POS S.
Detailed Description37 Position D-Sub Recep.
Dielectric MaterialPolybutylene Terephthal.
Digi-Key Part NumberA34114-ND
EnclosureWithout
Features-
Flange FeatureHousing/Shell (Unthread.
Housing FinishTin
Ingress Protection-
Insert MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer P/N5-747917-2
Manufacturer Product Nu.5-747917-2
Manufacturer Standard L.15 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Mounting Holes
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Contacts37
Number of Positions37
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Pack Quantity100
PackageTray
PCB Contact Termination.Tin-Copper
PCB Mount Retention TypeNone
Primary TypeD-Sub
Product StatusActive
SealableNo
SeriesHD-20 Series, AMPLIMITE.
Shell MaterialFull Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell Size4
Shell Size, Connector L.4 (DC, C)
Shell TypeFull Metal Shell
ShieldedYes
Shipping Weight5 pounds
StandardsUL94 V-0
TerminationSolder, Solder Cup
Termination Method to W.Solder
TypeCable Socket
Voltage Rating250V, 250 V
Wire Gauge-
Wire Size.5 ? .6, 20, 20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5-747917-25.69103945TE CONNECTIVITY/AMP BRAND5.69 @ 10
Onlinecomponents.com5-747917-27.2711988TE Connectivity / AMP Brand7.27 @ 10
thumbzoomComponent Electronics412F-37Q8.46110TE CONN8.46 @ 10
TE Connectivity5-747917-28.82581652TE Connectivity (TE)8.8258 @ 10
thumbzoomNewark79K35009.281507AMP - TE CONNECTIVITY9.28 @ 10
thumbzoomZoroG80103755410.0110Te Connectivity10.0 @ 10
us.rs-online.com7004164010.32144TE Connectivity10.32 @ 10
thumbzoomTME5-747917-210.61114TE Connectivity10.61 @ 10
AmazonTPB00DJUICSK12.711102TE CONNECTIVITY / AMP12.71 @ 10
RS Delivers489-252213.1041270TE Connectivity13.104 @ 10
thumbzoomDigi-Key112389013.815611248TE Connectivity AMP Connectors13.8156 @ 10
skygeek.comSGP47208-X1001338.0110TE CONNECTIVITY5.01338.0 @ 10
