mpn:
brand:
manufacturer:
MPN:
Description:

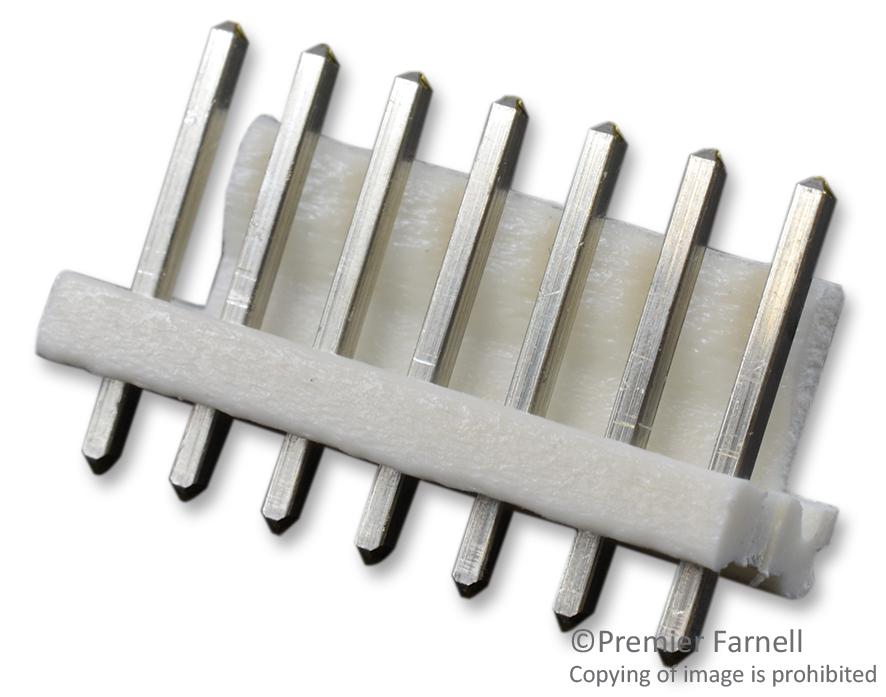

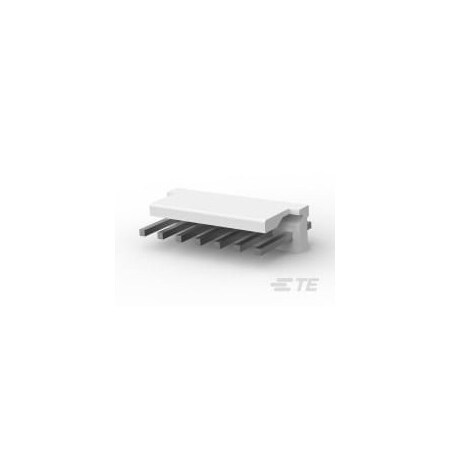

Connector MTA-156 Male 7 Copper Alloy 7 600 0.156 in. Polyester White
Preferred Price:
11.46
Price:
11.46
Min Simple Price:
0.11
Absolute Min Price:
8.66
Min Price:
8.66
Dimensions:
[2.0, 1.0, 1.0]
qty:
1
simpleSku:
NjI5OA:::640445-7
sku:
NjI5OA::3M:640445-7@x50
condition:
11
seller:
ExcessParts.Net
amzMan:
te connectivity / amp
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | CSA ; UL |
| Alternate Mfr Part Number, Manufacturer Product Number | 640445-7 |
| Angle | Straight |
| Application | For wire-to-board |
| Applications | General Purpose, Industrial |
| Base Product Number | 640445 |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 3.96?mm?[?.156?in?] |
| Circuit Application | Power |
| Color, Housing Color | White |
| Color, Housing Color, Insulation Color | Natural |
| Connector | Printed Circuit Board |
| Connector Mounting Type, Primary Type | Board Mount |
| Connector System | Wire-to-Board |
| Connector Type | Male |
| Connector Type, Product Type | Header |
| Contact Base Material, Contact Material | Copper Alloy |
| Contact Centerline Spacing, Pin Spacing | 0.156 in |
| Contact Current Rating (Max), Number of Contacts, Number of Positions, Number of Power Positions | 7 |
| Contact Finish - Mating, Contact Finish - Post, Contact Mating Area Plating Material, Contact Plating, Contact Termination Area Plating Material | Tin |
| Contact Finish Thickness - Mating, Contact Finish Thickness - Post, Features, Ingress Protection, Mated Stacking Heights, Row Spacing - Mating | - |
| Contact Length - Mating | 0.400" (10.16mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Contact Mating Area Plating Thickness | 2.54??m?[?100??in?] |
| Contact Retention, Mating Alignment, Panel Mount Feature, PCB Mount Alignment, PCB Mount Retention | Without |
| Contact Shape | Square |
| Contact Type | Male Pin, Tab |
| Contact Underplating Material | Nickel |
| Country of Origin (subject to change) | China |
| Current Rating | 7 A |
| Current Rating (Amps) | Varies by Wire Gauge |
| Description | CONN HEADER VERT 7POS 3.96MM |
| Detailed Description | Connector Header Through Hole 7 position 0.156" (3.96mm) |
| Digi-Key Part Number | A19892-ND |
| Fastening Type | Friction Lock |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Header Type | Unshrouded |
| Housing Material | Polyester, Thermoplastic Polyester |
| Housing Type, Type | Plug |
| Insulation Diameter | 0.095" (Single Wire), 0.07" (Mass Termination Wires) |
| Insulation Height | 0.425" (10.80mm) |
| Insulation Material | Thermoplastic, Glass Filled |
| Manufacturer Standard Lead Time | 19 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material Flammability Rating | UL94 V-0 |
| Mounting Hole Size | 0.07 in |
| Mounting Type | Through Hole, PCB Mount |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature | -55 to +105 ?C, -55?C ~ 105?C |
| Operating Temperature Range | -55 ? 105??C?[?-67 ? 221??F?] |
| Operating Voltage | 600 |
| Overall Contact Length | 0.650" (16.51mm) |
| Overall Length | 1.092 " |
| Package | Bulk |
| Packaging Method | Package |
| PCB Mount Orientation | Vertical |
| Pin Length | 0.125 " |
| Pitch | 3.96 mm (0.156") |
| Pitch - Mating | 0.156" (3.96mm) |
| Product Header | MTA-156 Connector Header Assembly |
| Product Status | Active |
| Sealable | No |
| Series | MTA-156 Series, MTA-156 |
| Shrouding | Shrouded - 1 Wall |
| Special Features | IDC, Pinstrip |
| Standards | UL 94V-0 Housing Flammability Rating, RoHS Compliant, ELV Compliant |
| Style | Board to Cable/Wire |
| Terminal Post Length | 0.125 in. |
| Termination | Solder |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Termination Post | 3.56?mm?[?.14?in?] |
| UL Flammability Rating | UL 94V-0 |
| Voltage Rating | 600VAC, 600 V |
| Wire Size | 26-18 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | ExcessParts.Net | 640445-7 | 0.11 | 16.544 | 1 | 250 | TE CONNECTIVITY | 0.11 @ Qty: 250+ | ||
| Onlinecomponents.com | 640445-7 | 0.21 | 31.584 | 1 | 21827 | TE Connectivity / AMP Brand | 0.21 @ Qty: 250+ | |||
| TE Connectivity | 640445-7 | 0.3416 | 51.37664 | 1 | 5432 | TE Connectivity (TE) | 0.3416 @ Qty: 250+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 640445-7 | 0.35 | 80.5 | 200 | 250 | TE CONNECTIVITY/AMP BRAND | 0.35 @ Qty: 250+ | |||
| us.rs-online.com | 70083694 | 0.42 | 63.84 | 5 | 627 | TE Connectivity | 0.42 @ Qty: 250+ | |||
 | Newark | 90F5347 | 0.479 | 72.0416 | 1 | 1001 | AMP - TE CONNECTIVITY | 0.479 @ Qty: 250+ | ||
 | NEP Electronics | 640445-7 | 0.4795 | 110.285 | 200 | 250 | TE Connectivity | 0.4795 @ Qty: 250+ | ||
 | Digi-Key | 259193 | 0.49872 | 75.007488 | 1 | 4632 | TE Connectivity AMP Connectors | 0.49872 @ Qty: 250+ | ||
 | Zoro | G000927694 | 0.55 | 86.02 | 16 | 250 | Te Connectivity | 0.55 @ Qty: 250+ | ||
 | TME | 640445-7 | 11.142 | 1715.868 | 10 | 250 | TE Connectivity | 11.142 @ Qty: 250+ | ||
| AmazonSC | B00LQRG5KK | 33.33 | 5012.832 | 1 | 250 | TE CONNECTIVITY %2F AMP | 33.33 @ Qty: 250+ |
