Description:

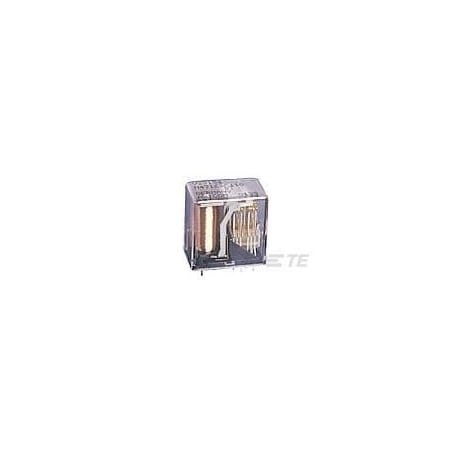

Power/Signal Relay, 2 Form A, 4Pdt, Momentary, 0.012A (Coil), 250Vdc (Coil), 1000Mw (Coil), 5A (Contact), 260Vdc (Contact), Dc Input, Ac/Dc Output, Socket Mount
Attributes
| Key ^ | Value |
|---|---|
| Body Depth - Relay | 1.378 in |
| Body Height - Relay | 1.181 in |
| Body Width - Relay | 0.748 in |
| Coil Resistance | 9200 ? |
| Coil Type | Monostable, DC |
| Contact Form - Relay | 2 Form A (NO) |
| Contact Limiting Breaking Current, Contact Limiting Continuous Current, Contact Limiting Making Current, Contact Limiting Short-Time Current, Contact Rating | 5A |
| Contact Material | Nickel |
| Contact Voltage Rating | 260 VDC, 250 VAC |
| Dielectric Voltage | 100 Vrms Adjacent Contacts; 1000 Vrms Coil and Contact; 500 Vrms Open Contacts |
| Electrical Connection - Power Relay | Solder Terminals |
| Features | Standard Type |
| Item - Relay | Cradle S Relay |
| Mounting Type | Socket |
| Number of Poles | 4 |
| Operating Temp. Range | -40 to 70?C |
| Power Consumption - Relay | 1000 to 2000 mW |
| Protection Category | RTI |
| Switching Voltage | 250 VAC, 260 VDC |
| Terminal Type | Plug-In, Solder |
