Description:

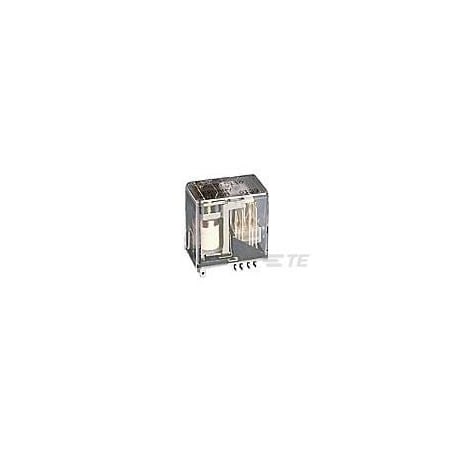

Power/Signal Relay, 4 Form C, 4Pdt, Latched, 0.034A (Coil), 150Vdc (Coil), 914Mw (Coil), 2A (Contact), 150Vdc (Contact), Ac/Dc Input, Ac/Dc Output, Socket Mount
Attributes
| Key ^ | Value |
|---|---|
| Body Depth - Relay, Body Height - Relay | 1.181 in |
| Body Width - Relay | 0.748 in |
| Coil Resistance | 1400 ? |
| Coil Type | Bistable, 2 Coils, Polarized |
| Contact Form - Relay | 4 Form C (CO) |
| Contact Limiting Breaking Current, Contact Limiting Continuous Current, Contact Limiting Making Current, Contact Limiting Short-Time Current, Contact Rating | 2A |
| Contact Material | Ag |
| Contact Voltage Rating, Switching Voltage | 125 VAC [ 150 VDC ] |
| Dielectric Voltage | 500 Vrms Adjacent Contacts; 500 Vrms Open Contacts |
| Electrical Connection - Power Relay | Solder Terminals |
| Features | BIFURCATED/Twin Contacts; Standard Type |
| Item - Relay | Cradle P Relay |
| Mounting Type | Screw Mount, Socket |
| Number of Poles | 4 |
| Operating Temp. Range | -40 to 70 ?C |
| Power Consumption - Relay | 1500 mW |
| Protection Category | RTI |
| Terminal Type | Plug-In, Solder |
