mpn:
brand:
manufacturer:
MPN:
Description:

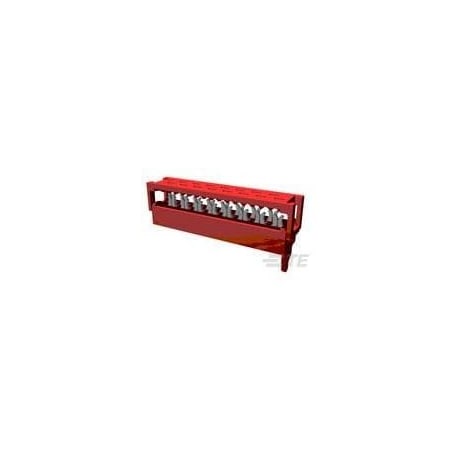

TE Connectivity 7-215083-4 | Micro-MaTch; plug; male; PIN: 4; IDC; for ribbon cable; Layout: 2x
Weight:
1e-05
Weight:
0.01 LB
Preferred Price:
2.0
Price:
2.0
Min Simple Price:
0.39
Absolute Min Price:
1.76
Min Price:
1.76
Dimensions:
[1.0, 1.0, 1.0]
qty:
204
simpleSku:
NjI5OA:::7-215083-4
sku:
NjI5OA::NK:7-215083-4@y0
condition:
11
seller:
Arrow
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Accepts Wire Insulation Diameter Range | .8 ? 1?mm?[?.035 ? .039?in?] |
| Alternate Mfr Part Number, Manufacturer Part No., Manufacturer Product Number | 7-215083-4 |
| Alternate Part No. | 571-7-215083-4 |
| Base Product Number | 215083 |
| Brand, Manufacturer | TE Connectivity |
| Cable Termination, Termination Style | IDC |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 1.27?mm?[?.05?in?] |
| Circuit Application | Signal |
| Color, Housing Color | Red |
| Connection Material, Contact Base Material, Contact Material | Phosphor Bronze |
| Connector Height | 6.8?mm?[?.27?in?] |
| Connector Profile | Standard |
| Connector System | Cable-to-Board |
| Connector Type | Connector Assembly, Male-On-Wire |
| Connector, Connector Style, Connector Type | Plug |
| Connector, Connector Terminates To | Wire & Cable |
| Contact Current Rating (Max), Row-to-Row Spacing | 1.5 |
| Contact Finish | Tin over Nickel |
| Contact Finish Thickness, Fastening Type | - |
| Contact Finish, Contact Mating Area Plating Material, Contact Plating, PCB Contact Termination Area Plating Material | Tin |
| Contact Gender | Pin (Male) |
| Contact Mating Area Plating Material Thickness | 3 ? 5??m?[?118.11 ? 196.85??in?] |
| Contact Plating Thickness | 3 to 5 ?m |
| Contact Type | Male Pin, Pin |
| Contact Underplating Material | Nickel |
| Current Rating | 1.5 A |
| Description | CONN PLUG 4POS IDC 28AWG TIN |
| Detailed Description | 4 Position Rectangular Plug Connector IDC Tin 28 AWG |
| Digi-Key Part Number | A99464TR-ND - Tape & Reel (TR) |
| Features | Feed Through |
| Features, Header Type | Shrouded |
| Flammability Rating | UL 94 V-0 |
| Header Type | Pin Header |
| Height | 6.8 mm, 6.8 mm[.27 in] |
| Hole Center to Center, Pitch | 1.27 mm |
| Housing Material | Polyester, Polyester - GF |
| Insulation Diameter | .9 mm[.035 in] |
| Insulation Resistance | 1000 MegaOhms |
| Item, Product Type | Connector |
| Latching Type | Unlatched |
| Length | 8.6 mm |
| Manufacturer Standard Lead Time | 25 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material | Glass-Filled Polyester |
| Mating Alignment Type | Polarization |
| Mating Alignment, Polarization | With |
| Mating Retention, Panel Mount Feature, PCB Mount Alignment | Without |
| Max. Insulation Dia. | 0.039 in |
| Max. Temp. | 105?C |
| Max. Voltage | 100V AC/DC |
| Mounting Angle | Right |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts, Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature Range | -40 ? 105 |
| Operating Voltage | 100, 100 V |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Packaging | Reel |
| Packaging Method | Box & Carton |
| Packaging Quantity | 250 |
| Pitch | 0.100" (2.54mm) |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Connectors |
| Profile | Low |
| Row Spacing | 0.059" (1.50mm), 1.5 mm |
| Series | Micro-MaTch |
| Shrouded | Yes |
| Temperature Operating Range | -40 ? 105 ?C |
| Terminal Finish | Tin over Nickel; Tin Plated |
| Terminal Type | Insulation Displacement Crimp |
| Termination Method to Wire | Insulation Displacement Crimp (IDC) |
| Type, Wire Type | Ribbon Cable |
| UL Flammability Rating | UL 94V-0 |
| Voltage Rating | 230 V |
| Wire Gauge, Wire Range | 28 AWG |
| Wire Size | 28, .08 ? .09 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow | 7-215083-4 | 0.39 | 0.39 | 1 | 1981 | TE Connectivity | 0.39 @ Qty: 1+ | |||
| Future Electronics | 1054623 | 0.408 | 41.0448 | 250 | 21500 | TE Connectivity | 0.408 @ Qty: 250+ | |||
 | NEP Electronics | 7-215083-4-CT | 0.49 | 6.958 | 34 | 204 | TE Connectivity | 0.49 @ Qty: 34+ | ||
 | Newark | 51X2218 | 0.75 | 75.45 | 250 | 7500 | AMP - TE CONNECTIVITY | 0.75 @ Qty: 250+ | ||
| Onlinecomponents.com | 7-215083-4 | 0.77 | 0.77 | 1 | 11200 | TE Connectivity / AMP Brand | 0.77 @ Qty: 1+ | |||
| TE Connectivity | 7-215083-4 | 0.9471 | 0.9471 | 1 | 4278 | TE Connectivity (TE) | 0.9471 @ Qty: 1+ | |||
 | Digi-Key | 1955691 | 1.22 | 1.22 | 1 | 12279 | TE Connectivity AMP Connectors | 1.22 @ Qty: 1+ | ||
| us.rs-online.com | 70971747 | 1.33 | 133.798 | 250 | 204 | TE Connectivity | 1.33 @ Qty: 250+ | |||
| RS Delivers | 341-7394P | 1.404 | 1.404 | 1 | 1100 | TE Connectivity | 1.404 @ Qty: 1+ | |||
 | TME | 7-215083-4/C | 1.425 | 1.425 | 1 | 725 | TE Connectivity | 1.425 @ Qty: 1+ | ||
 | swatee.com | 7-215083-4 | 1.57 | 1.57 | 1 | 2653 | TE Connectivity | 1.57 @ Qty: 1+ | ||
| AmazonTP | B00OVEEENK | 9.06 | 9.06 | 1 | 204 | 2 | TE Connectivity | 9.06 @ Qty: 1+ | ||
 | Zoro | G601069793 | 212.5 | 212.5 | 1 | 204 | Te Connectivity | 212.5 @ Qty: 1+ |
