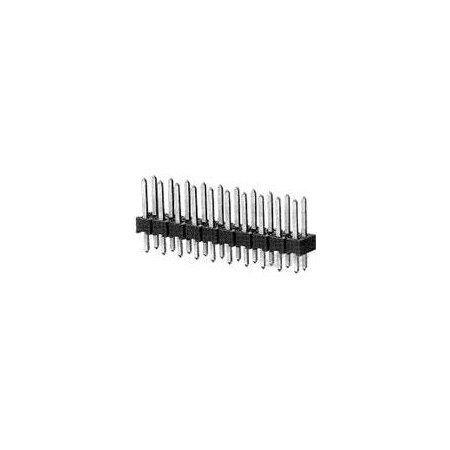

TE Connectivity 826656-2

mpn826656-2
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 826656-2

Brand: TE Connectivity
PartNumber: 826656-2
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applications	-
Base Product Number	826656
Category	Connectors, Interconnec.
Color	Green
Connection Material	Phosphor Bronze
Connector Terminates To	Printed Circuit Board
Connector Type	Header, Breakaway
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	3.90?in (0.099?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.228" (5.80mm)
Contact Length - Post	0.126" (3.20mm)
Contact Material	Brass
Contact Plating Thickne.	0.8 ?m
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	5 A
Current Rating (Amps)	5A
Description	CONN HEADER VERT 4POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A121771-ND
Family Name	AMPMODU Interconnect Sy.
Fastening Type	Push-Pull
Features	-
Flammability Rating	UL 94 V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Green
Insulation Height	0.110" (2.79mm)
Insulation Material	Polybutylene Terephthal.
Item	PCB Mount Header
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	826656-2
Manufacturer Standard L.	23 Weeks
Mated Stacking Heights	-
Material	PBT
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-65?C ~ 105?C
Overall Contact Length	0.465" (11.81mm)
Package	Bulk
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	AMPMODU Mod II Series, .
Shrouding	Unshrouded
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Type	Header, Breakaway
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Future Electronics	C012887224	0.318	18000	377	TE Connectivity	0.318 @ 18000
Newark	96H7344	0.332	18000	301	AMP - TE CONNECTIVITY	0.332 @ 18000
us.rs-online.com	70287323	0.37151	10	301	TE Connectivity	0.37151 @ 10
TME	826656-2	0.516	5	125	TE Connectivity	0.516 @ 5
Digi-Key	2276228	0.52	1	7686	TE Connectivity AMP Connectors	0.52 @ 1
Hotenda	H1302691	0.64	1	377	TE Connectivity AMP Connectors	0.64 @ 1
Zoro	G605892946	2340.0	1	301	Te Connectivity	2340.0 @ 1
