mpn:
brand:
manufacturer:
MPN:
Description:

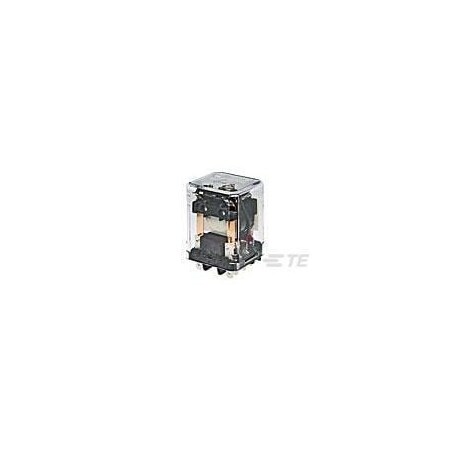

Relay, E-Mech, DPDT, Cur-Rtg 10A, Ctrl-V 12DC, Vol-Rtg 240/28AC/DC, 9 Pin, KUEP
Weight:
0.044
Weight:
0.19 LB
Preferred Price:
39.18
Price:
39.18
Min Simple Price:
21.41
Absolute Min Price:
30.4
Min Price:
30.4
Dimensions:
[3.0, 3.0, 2.0]
qty:
21
simpleSku:
NjI5OA:::8-1393113-6
sku:
NjI5OA::JK:8-1393113-6@y0
condition:
11
seller:
AmazonTP
amzMan:
te connectivity / potter & brumfield
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Mfr Part Number, Part # Aliases | 8-1393113-6 |
| Alternate Part No. | 655-KUEP-11D15-12 |
| ASIN | B00DWIOPSA |
| Base Product Number | KUEP-11 |
| Batteries Required? | No |
| Brand | TE Connectivity / P&B |
| Category | Relays |
| Coil Current | 150 mA, 150mA |
| Coil Insulation | Class B |
| Coil Magnetic System | Monostable, DC |
| Coil Power Rating Class | 1500 |
| Coil Power Rating DC | 1800 |
| Coil Resistance | 80 Ohms, 80 |
| Coil Special Features | UL Coil Insulation Class B |
| Coil Termination, Termination Style | Quick Connect Terminal |
| Coil Type | Non-Latching, Non Latching |
| Coil Voltage | 12 VDC, 12VDC |
| Coil Voltage Rating, Control Voltage | 12 |
| Contact Arrangement | 2 Form C (CO) |
| Contact Current Class | 5 ? 10, 16 |
| Contact Current Rating (Max), Contact Limiting Breaking Current | 10 |
| Contact Current Rating, Contact Rating (Current), Current Rating, Maximum Switching Current | 10 A |
| Contact Form | DPDT, DPDT (2 Form C) |
| Contact Material | AgCdO, Silver Cadmium Oxide, Silver Cadmium Oxide (AgCdO) |
| Contact Number of Poles | 2 |
| Contact Rating (Current) | 10A |
| Contact Switching Load (Min) | 300mA @ 12V |
| Contact Termination | Quick Connect |
| Contact Voltage Rating | 150, 300 VAC |
| Country of Origin (subject to change) | China |
| Dimensions | 1.532 L x 1.406 W x 1.907 D in |
| Environmental Category of Protection | RTI |
| Features, Must Release Voltage, Seal Rating | - |
| Function, Relay Type | General Purpose |
| Height | 48.4 mm |
| Item Package Quantity | 1 |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Length | 38.9 mm |
| Manufacturer | TE Connectivity |
| Manufacturer Part No., Manufacturer Part Number, Part Number | KUEP-11D15-12 |
| Manufacturer Standard Lead Time | 13 Weeks |
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Mounting Style, Relay Mounting Type | Socket |
| Mounting Type | Socket Mount, Socketable, DIN Rail |
| Must Operate Voltage | 9 VDC |
| Number of Pins | 9 Pin |
| Operate Time | 15ms, 15 ms |
| Operating Temperature | -45?C ~ 70?C, -45 |
| Operating Temperature Range | -45 ? 70 |
| Package | Bulk |
| Packaging | Bulk Pack |
| Packaging Method | Package |
| Power Consumption | 1.8 W |
| Power Relay Type | Industrial Panel Plug-In |
| Primary Type, Product | Power Relays |
| Product Category | General Purpose Relays |
| Product Header | KU Series Enclosed DC Relays |
| Product Height | 48.4?mm?[?1.905?in?] |
| Product Length | 38.9?mm?[?1.53?in?] |
| Product Status | Active |
| Product Width | 35.7?mm?[?1.405?in?] |
| Relay Type | Electromechanical |
| Release Time | 10ms, 10 ms |
| Series | KUEP Series, KUEP |
| Standard Package | 25 |
| Standards | UL ; CSA |
| Switching Voltage | 150VDC - Max |
| Terminal Type | Quick Connect, Solder |
| Termination | QC Tabs |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Type | Cube Style |
| Voltage Rating | 300 V |
| Width | 35.7 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| AmazonTP | B00HPLOEJK | 21.41 | 72.794 | 1 | 5 | 2 | TE CONNECTIVITY / POTTER & BRUMFIELD | 21.41 @ Qty: 5+ | ||
| iodParts | KUEP-11D15-12 | 27.47 | 192.29 | 10 | 50 | TE Connectivity | 27.47 @ Qty: 10+ | |||
| Waldom | TE CONNECTIVITY POTTER-BRUMFIELD KUEP-11D15-12 | 27.51 | 500.682 | 38 | 5 | TE CONNECTIVITY / POTTER-BRUMFIELD | 27.51 @ Qty: 38+ | |||
 | swatee.com | KUEP-11D15-12 | 34.32 | 116.688 | 1 | 11 | TE Connectivity | 34.32 @ Qty: 5+ | ||
| Onlinecomponents.com | 8-1393113-6 | 36.46 | 123.964 | 1 | 71 | TE Connectivity | 36.46 @ Qty: 5+ | |||
 | AmazonSC | B00DWIOPSA | 37.81 | 128.554 | 1 | 5 | TE Connectivity | 37.81 @ Qty: 5+ | ||
 | NRI Industrial | D585184 | 38.02 | 129.268 | 1 | 5 | POTTER BRUMFIELD | 38.02 @ Qty: 5+ | ||
 | Zoro | G400976841 | 40.0 | 2520.0 | 150 | 5 | Te Connectivity | 40.0 @ Qty: 150+ | ||
| TE Connectivity | 8-1393113-6 | 41.0964 | 139.72776 | 1 | 2585 | TE Connectivity (TE) | 41.0964 @ Qty: 5+ | |||
| us.rs-online.com | 70198594 | 42.82 | 145.588 | 1 | 93 | TE Connectivity | 42.82 @ Qty: 5+ | |||
 | Newark | 17M0222 | 43.91 | 149.294 | 1 | 45 | POTTER&BRUMFIELD - TE CONNECTIVITY | 43.91 @ Qty: 5+ | ||
| Digi-Key | 1015536 | 45.708 | 155.4072 | 1 | 693 | TE Connectivity Potter & Brumfield Relays | 45.708 @ Qty: 5+ |
