mpn:
brand:
manufacturer:
MPN:
Description:

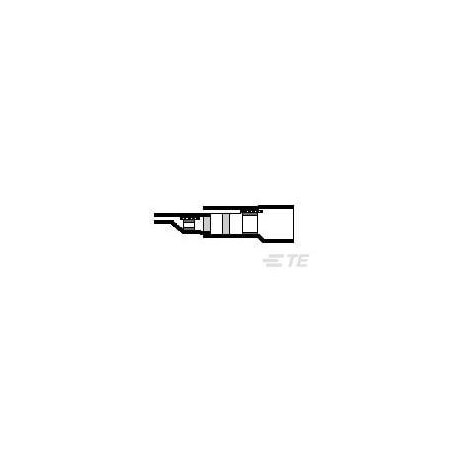

Crimp Terminals Raychem COAX TERM - HI/LOW TE
Weight:
0.01
Weight:
0.01 LB
Preferred Price:
8.55
Price:
8.55
Min Simple Price:
3.87
Absolute Min Price:
6.46
Min Price:
6.46
Dimensions:
[2.0, 1.0, 1.0]
qty:
21
simpleSku:
OTQ3MQ:::B-044-22-N
sku:
OTQ3MQ::QA:B-044-22-N@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
raychem (te connectivity)
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Mfr Part Number | 964073-000 |
| Applies To | Coaxial Cable |
| Cable Shield Material | Silver, Tin |
| Coax Cable Type | 178, 404 |
| Conductor Outside Diameter | .3 " - .8 mm [ .011 " - .03 in ] |
| Dielectric Outside Diameter (Max) | 1.7 mm [ .067 in ] |
| Jacket Outside Diameter | 1.7 " - 3.4 mm [ .065 " - .135 in ] |
| Lead Color | White/Blue |
| Lead Plating Material | Tin |
| Lead Stranding | Stranded |
| Operating Temperature (Max) (?C) | 150 |
| Overall Length | 28 mm [ 1.1 in ] |
| Pre-Installed Lead | Yes |
| Pre-Installed Lead Wire Size (AWG) (AWG) | 22 |
| Pre-Installed Lead Wire Size (mm?) (mm?) | 0.38 |
| Product Type | Coax Terminator |
| Resistance Properties | Splash Protection |
| Series | B-044 Series |
| Shield Outside Diameter (Max) | .09 in, 2.3 mm |
| Splice Type | SolderSleeve |
| Termination Method | Solder |
| Wire Size | 10-12 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | B-044-22-N | 3.79 | 58.366 | 1 | 504 | TE Connectivity / Raychem Brand | 3.79 @ Qty: 25+ | |||
| Hotenda | H127017 | 5.1564 | 79.40856 | 1 | 5899 | TE Connectivity Aerospace Defense and Marine | 5.1564 @ Qty: 25+ | |||
| Waldom | TE CONNECTIVITY RAYCHEM B-044-22-N | 5.46 | 103.74 | 10 | 2475 | TE CONNECTIVITY / RAYCHEM | 5.46 @ Qty: 25+ | |||
 | Newark | 87K2348 | 7.32 | 1573.8 | 500 | 25 | RAYCHEM - TE CONNECTIVITY | 7.32 @ Qty: 500+ | ||
| us.rs-online.com | 70101008 | 10.32 | 158.928 | 1 | 25 | TE Connectivity | 10.32 @ Qty: 25+ | |||
| AmazonTP | B00KSX4JQA | 20.76 | 319.704 | 1 | 25 | 5 | Raychem (TE Connectivity) | 20.76 @ Qty: 25+ | ||
 | Zoro | G800954623 | 92.85 | 1429.89 | 1 | 25 | Raychem | 92.85 @ Qty: 25+ |
