mpn:
brand:
manufacturer:
MPN:
Description:

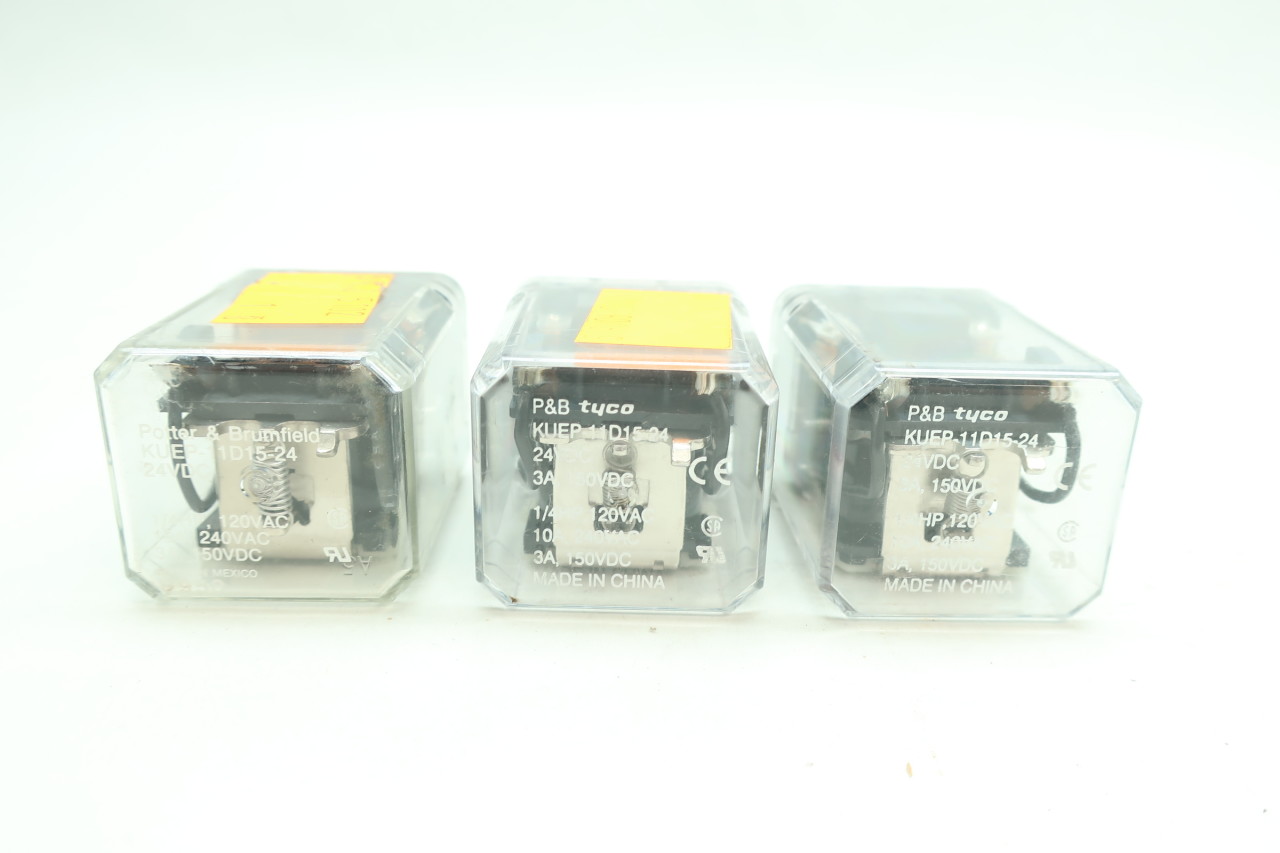

Relay, E-Mech, DPDT, 10A, Ctrl-V 24DC, Vol-Rtg 240/28AC/DC, 9 Pin, KUEP Series
Weight:
0.09
Weight:
0.09 LB
Preferred Price:
39.61
Price:
39.61
Min Simple Price:
21.652
Absolute Min Price:
30.74
Min Price:
30.74
Dimensions:
[4.0, 3.0, 2.0]
qty:
21
simpleSku:
NjI5OA:::KUEP-11D15-24
sku:
NjI5OA::6U:KUEP-11D15-24@y0
condition:
11
seller:
Avnet
amzMan:
te connectivity / potter & brumfield
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Mfr Part Number | 8-1393113-7 |
| Base Product Number | KUEP-11 |
| Category | Relays |
| Coil Current | 75 mA, 75.0mA |
| Coil Insulation | Class B |
| Coil Resistance | 320 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24VDC, 24 VDC |
| Contact Current Rating, Contact Rating (Current), Current Rating | 10 A |
| Contact Form | DPDT, DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO), Silver Cadmium Oxide |
| Contact Rating (Current) | 10A |
| Contact Voltage Rating | 300 VAC |
| Control Voltage | 24 |
| Description | RELAY GEN PURPOSE DPDT 10A 24V |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable |
| Digi-Key Part Number | PB467-ND |
| Dimensions | 1.532 L x 1.406 W x 1.907 D in |
| Features, Must Release Voltage, Seal Rating | - |
| Function, Relay Type | General Purpose |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Manufacturer Part Number, Manufacturer Product Number | KUEP-11D15-24 |
| Manufacturer Standard Lead Time | 20 Weeks, 4 Weeks |
| Manufacturer, Mfr | TE Connectivity Potter & Brumfield Relays |
| Mounting Type | Socket Mount, Socketable |
| Must Operate Voltage | 18 VDC |
| Number of Pins | 9 Pin |
| Operate Time | 15ms, 15 ms |
| Operating Temperature | -45?C ~ 70?C, -45 |
| Package | Bulk |
| Packaging | Bulk Pack |
| Primary Type | Power Relays |
| Product Header | KU Series Enclosed DC Relays |
| Product Status | Active |
| Relay Type | Electromechanical |
| Release Time | 10ms, 10 ms |
| Series | KUEP Series, KUEP |
| Standard Package | 25 |
| Standards | UL ; CSA |
| Switching Voltage | 150VDC - Max |
| Termination | QC Tabs |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Voltage Rating | 300 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Avnet | 8-1393113-7 | 21.652 | 229.5112 | 25 | 137 | TE Connectivity | 21.652 @ Qty: 25+ | |||
| Onlinecomponents.com | KUEP-11D15-24 | 22.16 | 22.16 | 1 | 236 | TE Connectivity / P&B Brand | 22.16 @ Qty: 1+ | |||
| RS Delivers | 783-0628 | 22.536 | 22.536 | 1 | 385 | TE Connectivity | 22.536 @ Qty: 1+ | |||
| iodParts | KUEP-11D15-24 | 25.91 | 119.186 | 10 | 700 | TE Connectivity | 25.91 @ Qty: 10+ | |||
| Allied Electronics | 71210831 | 28.01 | 28.01 | 1 | In Stock | TE Connectivity | 28.01 @ Qty: 1+ | |||
| Newark | 27AC7191 | 35.27 | 2137.362 | 150 | In Stock | POTTER&BRUMFIELD - TE CONNECTIVITY | 35.27 @ Qty: 150+ | |||
| us.rs-online.com | 70198595 | 39.95 | 39.95 | 1 | 579 | TE Connectivity | 39.95 @ Qty: 1+ | |||
| AmazonTP | B00DECQPTQ | 40.49 | 40.49 | 1 | In Stock | 1 | TE CONNECTIVITY | 40.49 @ Qty: 1+ | ||
 | AmazonSC | B00DECQPTQ | 40.49 | 40.49 | 1 | In Stock | Potter & Brumfield | 40.49 @ Qty: 1+ | ||
| AmazonUNK | B00DECQPTQ | 40.49 | 40.49 | 1 | In Stock | TE CONNECTIVITY | 40.49 @ Qty: 1+ | |||
 | NRI Industrial | D662776 | 41.95 | 41.95 | 1 | In Stock | POTTER BRUMFIELD | 41.95 @ Qty: 1+ | ||
 | Digi-Key | 365902 | 48.432 | 48.432 | 1 | 1 | TE Connectivity Potter & Brumfield Relays | 48.432 @ Qty: 1+ |
