TE Connectivity R10-E1Y4-V2.5K

B00DWIMOHE

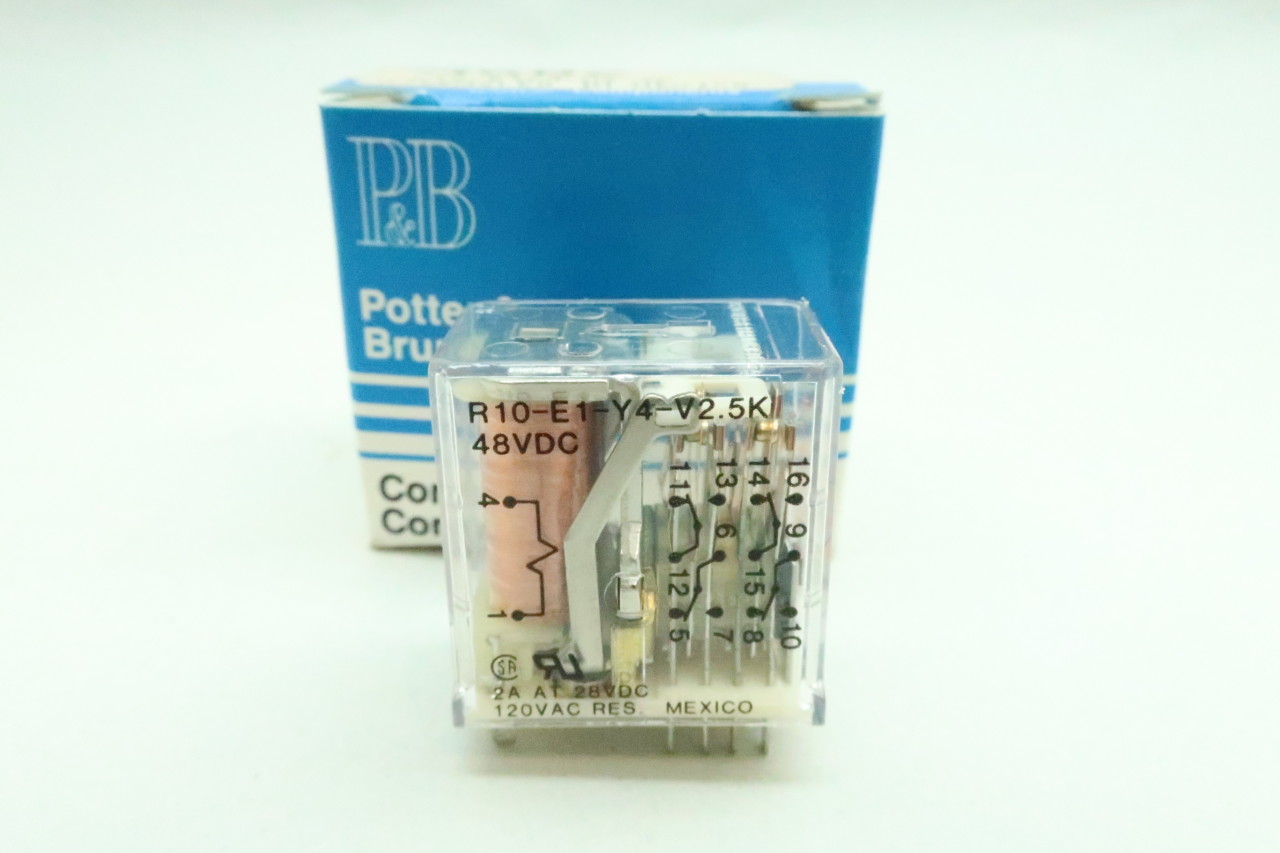

T-E Connectivity R10-E1Y4-V2.5K (1 pc) R10-E1Y4-V2.5K

T-E Connectivity R10-E1Y4-V2.5K (1 pc) R10-E1Y4-V2.5Kzoom

Attributes

Key Value
Alternate Mfr Part Numb.5-1393766-5
Base Product NumberR10-E1
CategoryRelays
Coil Current19.2 mA
Coil Insulation-
Coil Magnetic SystemMonostable, DC
Coil Power Rating Class800 ? 1000
Coil Power Rating DC900
Coil Resistance2500 Ohms, 2.5 kOhms, 2.
Coil Special FeaturesSensitive Version
Coil TypeNon Latching
Coil Voltage48VDC, 48 VDC
Coil Voltage Rating48
Contact Arrangement4 Form C (CO)
Contact Current Class2 ? 5, 16
Contact Current Rating .3
Contact Form4PDT, 4PDT (4 Form C)
Contact MaterialFine Silver, Ag, Silver.
Contact Number of Poles4
Contact Rating (Current)3 A
Contact Switching Load .100mA @ 12V
Contact Voltage Rating120, 240 VAC
Control Voltage48 V
Current Rating2 A
DescriptionRELAY GEN PURPOSE 4PDT .
Detailed DescriptionGeneral Purpose Relay 4.
Digi-Key Part NumberPB123-ND
Dimensions1.166 L x 0.736 W x 1.1.
Environmental Category .RTI
Features-
FunctionGeneral Purpose
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.R10-E1Y4-V2.5K
Manufacturer Standard L.33 Weeks
MfrTE Connectivity Potter .
Mounting TypeSocketable
Must Operate Voltage36 VDC
Must Release Voltage-
Number of Pins16 Pin
Operating Temperature-55?C ~ 75?C
Operating Temperature R.-55 ? 75
PackageBulk
Packaging MethodPackage
Power Relay TypeIndustrial Panel Plug-In
Primary TypeSignal Relays
Product HeaderR10 Series General Purp.
Product Height30.2?mm?[?1.189?in?]
Product Length29.6?mm?[?1.165?in?]
Product StatusActive
Product Width18.7?mm?[?.736?in?]
Relay Mounting TypeSocket
Relay TypeElectromechanical, Gene.
Seal Rating-
SeriesR10 Series, R10
StandardsUL ; CSA
Switching Voltage120VAC, 30VDC - Max
Terminal TypePlug-In, Solder
TerminationPlug-In
Termination StylePlug In
Voltage Rating240 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comR10-E1Y4-V2.5K19.39110TE Connectivity / P&B Brand19.39 @ 10
Allied Electronics7121070125.22150TE Connectivity25.22 @ 10
thumbzoomNewark17M180435.5835010POTTER&BRUMFIELD - TE CONNECTIVITY35.58 @ 350
thumbzoomDigi-Key4494035.7891182TE Connectivity Potter & Brumfield Relays35.789 @ 10
TE Connectivity5-1393766-536.8159164TE Connectivity (TE)36.8159 @ 10
thumbzoomJameco55269037.79110TE Connectivity37.79 @ 10
thumbzoomNRI IndustrialD70451141.95110POTTER BRUMFIELD41.95 @ 10
RS Delivers783-045745.516110TE Connectivity45.516 @ 10
us.rs-online.com7019912547.851237TE Connectivity47.85 @ 10
