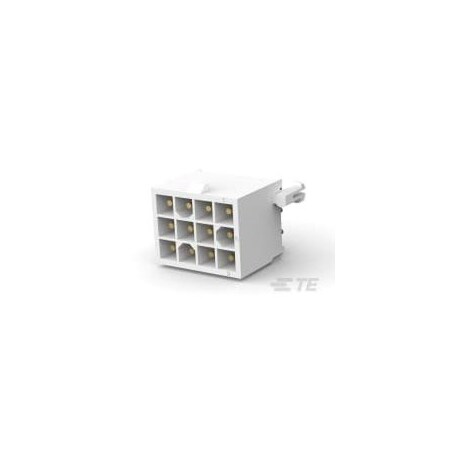

TE CONNECTIVITY / AMP 1-770186-1 PLUG & SOCKET CONN, PLUG, 12POS, 4.14MM (500 pieces)

mpn1-770186-1
brandname: TE CONNECTIVITY / AMP
manufacturername: TE CONNECTIVITY / AMP

TE CONNECTIVITY / AMP 1-770186-1 PLUG & SOCKET CONN, PLUG, 12POS, 4.14MM (500 pieces)

PackageQuantity: 500
Binding: Misc.
Manufacturer: TE CONNECTIVITY / AMP
Label: TE CONNECTIVITY / AMP

Attributes

Key	Value
Application	Power
Applications	General Purpose
Base Product Number	770186
Category	Connectors, Interconnec.
Color	White
Connector Terminates To	Printed Circuit Board
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	150.0?in (3.81?m)
Contact Length - Mating	-
Contact Length - Post	0.175" (4.45mm)
Contact Material	Brass
Contact Plating Thickne.	0.76 ?m
Contact Shape	Circular
Contact Type	Male Pin, Pin
Current Rating	9.5 A
Current Rating (Amps)	Varies by Wire Gauge
Description	CONN HEADER VERT 12POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A32466-ND
Fastening Type	Locking Ramp
Features	Circuit Identification .
Flammability Rating	UL 94 V-0
For Use With	Plug Housing
Height	13.49 mm
Hole Center to Center	4.14 mm
Ingress Protection	-
Insulation Color	White
Insulation Height	0.531" (13.50mm)
Insulation Material	Polyamide (PA), Nylon
Item	Header
Length	18.11 mm
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	1-770186-1
Manufacturer Standard L.	6 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Insulation Dia.	3.2 mm
Max. Temp.	105?C
Max. Voltage	600V AC/DC
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	12
Number of Positions	12
Number of Positions Loa.	All
Number of Rows	3
Operating Temperature	-20?C ~ 105?C
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.163" (4.14mm)
Product Status	Active
Row Spacing - Mating	0.163" (4.14mm)
Series	Mini-Universal MATE-N-L.
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E2847.
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole - Solder
Termination	Solder
Voltage Rating	600VAC
Width	13.97 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Newark	52K3352	1.33	1	100		AMP - TE CONNECTIVITY	1.33 @ 100
Future Electronics	9966599	1.98	1	500		TE Connectivity	1.98 @ 100
Waldom	TE CONNECTIVITY AMP BRAND 1-770186-1	2.12	25	11101		TE CONNECTIVITY/AMP BRAND	2.12 @ 100
Onlinecomponents.com	1-770186-1	2.15	1	895		TE Connectivity / AMP Brand	2.15 @ 100
Digi-Key	813572	3.2469	1	1970		TE Connectivity AMP Connectors	3.2469 @ 100
AmazonSC	B07KTFX14W	39.53	1	100		TE Connectivity / AMP	39.53 @ 100
AmazonTP	B07KTFX14W	43.11	1	100	1	TE Connectivity / AMP Brand	43.11 @ 100
Zoro	G305785579	87.25	1	100		Te Connectivity	87.25 @ 100
