TE Connectivity 1617126-4

B00KSNPG1M

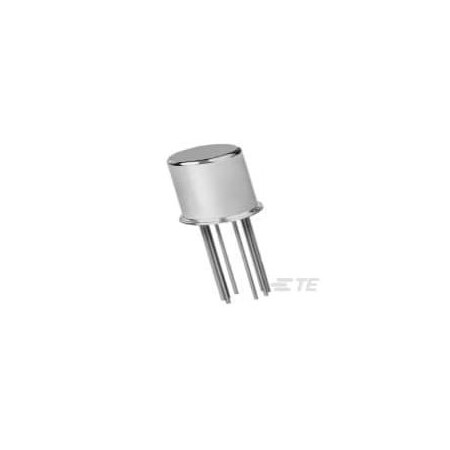

TE Connectivity Part Number 1617126-4

TE Connectivity Part Number 1617126-4zoom

Attributes

Key Value
Base Product NumberJMAWD
CategoryRelays
Coil Insulation-
Coil Resistance1560 Ohms, 1560 ?
Coil TypeNon Latching, Non-Polar.
Coil Voltage26.5VDC
Coil Volts26.5V DC
Contact FormDPDT (2 Form C)
Contact Form - Relay2 Form C, DPDT, 2 C/O
Contact MaterialSilver Palladium (AgPd).
Contact Rating1A
Contact Rating (Current)1 A
DescriptionJMAWD-26XL = M39016/15-.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part NumberJMAWD-26XL-ND
Electrical Connection -.Long Leads
FeaturesDiode, Coil Suppression.
Item - RelayMilitary/Aerospace High.
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.JMAWD-26XL
Manufacturer Standard L.20 Weeks
MfrTE Connectivity Aerospa.
Mounting TypePrinted Circuit Board, .
Must Operate Voltage14.2 VDC
Must Release Voltage1.37 VDC
Operate Time2 ms
Operating Temp. Range-65 to 125?C
Operating Temperature-65?C ~ 125?C
PackageBulk
Package Quantity1
Power Consumption - Rel.450 mW
Product StatusActive
Relay TypeGeneral Purpose
Release Time4 ms
Seal RatingSealed - Hermetically
SeriesMilitary, MIL-R-39016/1.
Switching Voltage115VAC, 28VDC - Max
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1617126-470.67193TE CONNECTIVITY/AMP BRAND70.67 @ 19
Allied ElectronicsE5192529100.210In StockTE Connectivity100.2 @ 10
Mouser655-JMAWD-26XL108.46115TE Connectivity108.46 @ 1
Newark35AC8918108.67103AMP - TE CONNECTIVITY108.67 @ 10
thumbzoomZoroG200974689109.991In StockTe Connectivity109.99 @ 1
Onlinecomponents.comJMAWD-26XL111.661176TE Connectivity111.66 @ 1
thumbzoomDigi-Key5402399116.4913TE Connectivity Aerospace, Defense and Marine116.49 @ 1
