TE Connectivity / CII Brand M39016/15-033M

B00FV1XI6Q

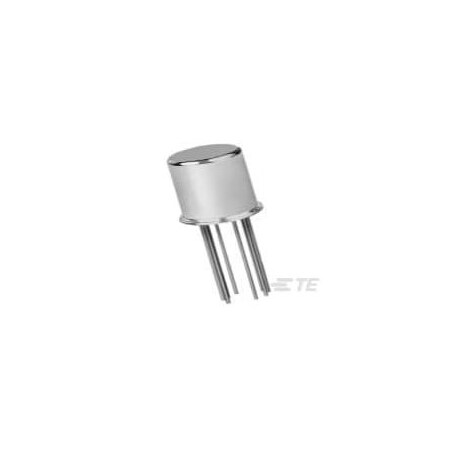

TE Connectivity / CII Brand M39016/15-033M Signal Relays (Dry to 3 Amps)

TE Connectivity / CII Brand M39016/15-033M Signal Relays (Dry to 3 Amps)zoom

Attributes

Key Value
Base Product NumberJMAWD
CategoryRelays
Coil Insulation-
Coil Resistance1560 Ohms
Coil TypeNon Latching
Coil Voltage26.5VDC
Contact FormDPDT (2 Form C)
Contact MaterialSilver Palladium (AgPd).
Contact Rating (Current)1 A
Country of Origin (subj.India
DescriptionRELAY GEN PURPOS DPDT 1.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number1122-1071-ND
FeaturesDiode
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.JMAWD-26XM
Manufacturer Standard L.16 Weeks
MfrTE Connectivity Aerospa.
Mounting TypeThrough Hole
Must Operate Voltage14.2 VDC
Must Release Voltage1.37 VDC
Operate Time2 ms
Operating Temperature-65?C ~ 125?C
PackageBulk
Product StatusActive
Relay TypeGeneral Purpose
Release Time4 ms
Seal RatingSealed - Hermetically
SeriesMilitary, MIL-R-39016/1.
Switching Voltage115VAC, 28VDC - Max
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1617126-563.64293TE CONNECTIVITY/AMP BRAND63.64 @ 29
Newark35AC891967.411In StockAMP - TE CONNECTIVITY67.41 @ 1
thumbzoomZoroG50097466268.6725In StockTe Connectivity68.67 @ 25
thumbzoomDigi-Key266622269.1623TE Connectivity Aerospace, Defense and Marine69.16 @ 2
Onlinecomponents.com1617126-591.051In StockTE Connectivity / AMP Brand91.05 @ 1
Electro SonicM3901615033M104.0923154TE Connectivity / CII104.092 @ 3
