TE Connectivity / AMP 1-1318300-9

B00FRBQV5K

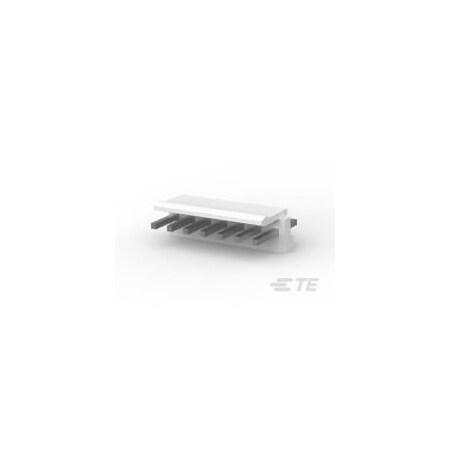

T-E Connectivity 1-1318300-9 (2 pcs) 3.96 EP HDR ASSY 9P NAT/TUBE

T-E Connectivity 1-1318300-9 (2 pcs) 3.96 EP HDR ASSY 9P NAT/TUBEzoom

Attributes

Key Value
ApplicationPower
ApplicationsGeneral Purpose, Indust.
Base Product Number1318300
CategoryConnectors, Interconnec.
ColorNatural
Connection MaterialBrass
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.303" (7.70mm)
Contact Length - Post0.146" (3.70mm)
Contact MaterialBrass
Contact Plating Thickne.31.49 to 70.86 ?m
Contact ShapeSquare
Contact TypePin; Tab, Male Pin
Current Rating8 A
Current Rating (Amps)7.5A
DescriptionCONN HEADER VERT 9POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA30518-ND
Fastening TypeFriction Lock
FeaturesUnshrouded, -
Flammability RatingUL 94 V-0
For Use WithPlug Housing
Height8.2 mm
Hole Center to Center3.96 mm
Ingress Protection-
Insulation ColorNatural
Insulation Height0.118" (3.00mm)
Insulation MaterialPolybutylene Terephthal.
ItemHeader
Length35.58 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1318300-9
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
MaterialGlass-Filled PBT
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts9
Number of Positions9
Number of Positions Loa.All
Number of Rows1
Operating Temperature-25?C ~ 105?C
Overall Contact Length0.567" (14.40mm)
PackageTube
Package Quantity1
Pitch - Mating0.156" (3.96mm)
Product StatusActive
Row Spacing - Mating-
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder
TerminationSolder
Voltage Rating250VAC
Width0.421 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-1318300-90.497111572TE Connectivity / AMP Brand0.4971 @ 1
WaldomTE CONNECTIVITY AMP BRAND 1-1318300-90.5214041559TE CONNECTIVITY/AMP BRAND0.52 @ 104
thumbzoomDigi-Key6866830.5522470085471404183TE Connectivity AMP Connectors0.552247008547 @ 1404
Newark95Y47271.07131559AMP - TE CONNECTIVITY1.07 @ 10
thumbzoomZoroG00093797676.961In StockTe Connectivity76.96 @ 1
