TE Raychem 1-1717011-4

B07NQTYSN8

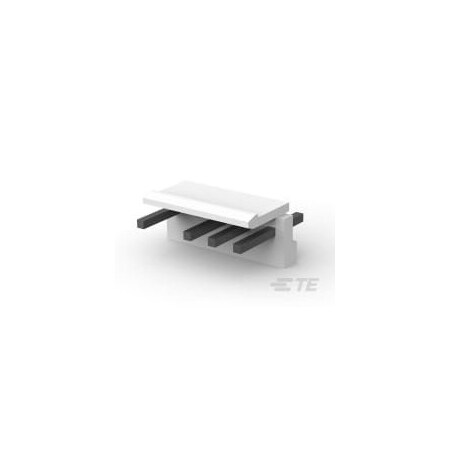

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1717011
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.303" (7.70mm)
Contact Length - Post0.146" (3.70mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)7.5A
DescriptionCONN HEADER VERT 5POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number1-1717011-4-ND
Fastening TypeFriction Lock
Features-
Ingress Protection-
Insulation ColorNatural
Insulation Height0.362" (9.20mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1717011-4
Manufacturer Standard L.17 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions5
Number of Positions Loa.4
Number of Rows1
Operating Temperature-25?C ~ 105?C
Overall Contact Length0.567" (14.40mm)
PackageBulk
Pitch - Mating0.156" (3.96mm)
Product StatusActive
Row Spacing - Mating-
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-1717011-40.096717680TE Connectivity / AMP Brand0.0967 @ 2
thumbzoomDigi-Key53387930.1063180002TE Connectivity AMP Connectors0.10631 @ 8000
Newark95Y48550.1340002AMP - TE CONNECTIVITY0.13 @ 4000
thumbzoomZoroG8009371690.1440002Te Connectivity0.14 @ 4000
