TE Connectivity 1-1986692-5

B00KTXSBT0

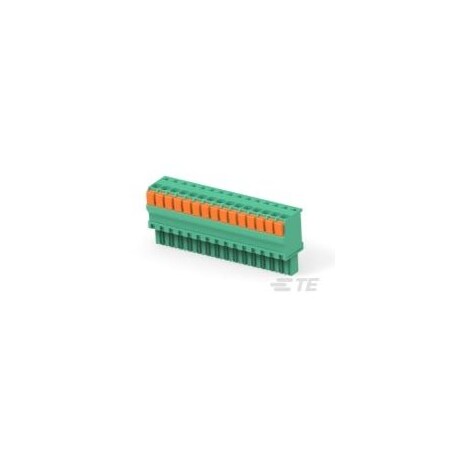

TE Connectivity Part Number 1-1986692-5

TE Connectivity Part Number 1-1986692-5zoom

Attributes

Key Value
Base Product Number1986692
CategoryConnectors, Interconnec.
ColorGreen
Contact MaterialCopper Alloy
Contact Mating FinishTin
Contact Tail Length-
Country of Origin (subj.Italy
Current - IEC-
Current - UL9 A
DescriptionTERM BLOCK PLUG 15POS S.
Detailed Description15 Position Terminal Bl.
Digi-Key Part NumberA104383-ND
FeaturesSide Stacking
Header Orientation-
Housing MaterialPolyamide (PA), Nylon
Ingress Protection-
Insulation Height0.459" (11.66mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1986692-5
Manufacturer Standard L.23 Weeks
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions15
Operating Temperature-40?C ~ 110?C
PackageBulk
Pitch0.138" (3.50mm)
Plug Wire Entry180?
Positions Per Level15
Product StatusActive
Screw Size-
Series-
Termination StyleScrewless - Leg Spring,.
Torque - Screw-
TypePlug, Female Sockets
Voltage - UL300 V
Wire Gauge or Range - A.14-30 AWG
Wire Gauge or Range - m.0.05-2mm?
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-1986692-515.76150TE Connectivity / AMP Brand15.76 @ 1
thumbzoomDigi-Key317551916.0108200In StockTE Connectivity AMP Connectors16.0108 @ 200
thumbzoomZoroG50094615718.27100In StockTe Connectivity18.27 @ 100
thumbzoomNewark83T405119.43200In StockTE CONNECTIVITY19.43 @ 100
