TE Connectivity / AMP 1-1986693-9

B010LBRE1K

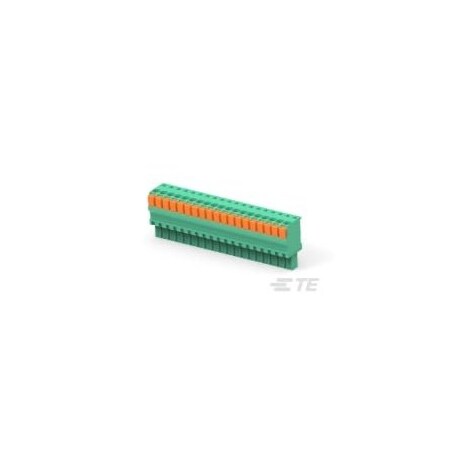

1-1986693-9, STR Plug Spring Type LH 19P, 3.50mm

1-1986693-9, STR Plug Spring Type LH 19P, 3.50mmzoom

Attributes

Key Value
Base Product Number1986693
CategoryConnectors, Interconnec.
ColorGreen
Contact MaterialCopper Alloy
Contact Mating FinishTin
Contact Tail Length-
Country of Origin (subj.Italy
Current - IEC-
Current - UL9 A
DescriptionTERM BLOCK PLUG 19POS S.
Detailed Description19 Position Terminal Bl.
Digi-Key Part NumberA104435-ND
FeaturesSide Stacking
Header Orientation-
Housing MaterialPolyamide (PA), Nylon
Ingress Protection-
Insulation Height0.459" (11.66mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1986693-9
Manufacturer Standard L.42 Weeks
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions19
Operating Temperature-40?C ~ 110?C
PackageBulk
Pitch0.138" (3.50mm)
Plug Wire Entry180?
Positions Per Level19
Product StatusActive
Screw Size-
Series-
Termination StyleScrewless - Leg Spring,.
Torque - Screw-
TypePlug, Female Sockets
Voltage - UL300 V
Wire Gauge or Range - A.14-30 AWG
Wire Gauge or Range - m.0.05-2mm?
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key317557122.08985200In StockTE Connectivity AMP Connectors22.08985 @ 200
thumbzoomZoroG80094637622.95200In StockTe Connectivity22.95 @ 200
thumbzoomNewark83T406522.97200In StockTE CONNECTIVITY22.97 @ 100
Onlinecomponents.com1-1986693-949.98158TE Connectivity / AMP Brand49.98 @ 1
