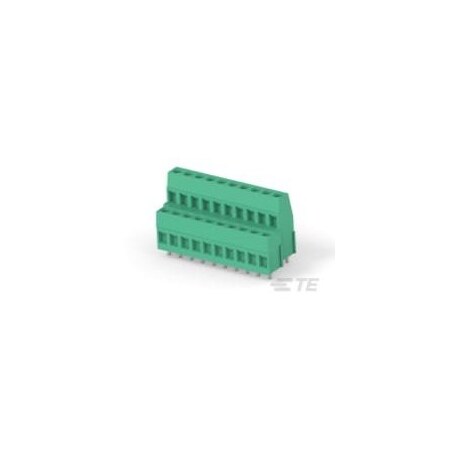

TE Connectivity 1-282888-1

mpn1-282888-1
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

TE Connectivity Part Number 1-282888-1

TE Connectivity Part Number 1-282888-1

zoom

Brand: TE Connectivity
PartNumber: 1-282888-1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Base Product Number	282888
Block Type	PCB Mount
Category	Connectors, Interconnec.
Centerline (Pitch)	5?mm?[?.197?in?]
Circuit Application	Power & Signal
Clamp Material - Plating	Brass - Nickel Plated
Color	Green
Connector	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector Style	Header
Connector System	Wire-to-Board
Contact Base Material	Brass
Contact Current Rating .	17.5
Contact Material - Plat.	Brass - Tin Plated
Country of Origin (subj.	Italy
Current	17.5 A
Current Rating (Max)	17.5
Features	Interlocking (Side)
Housing Material	Polyamide (PA66), Nylon.
Mating Orientation	Horizontal with Board
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	10
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Operating Temperature R.	-40 ? 120??C?[?-40 ? 24.
Package	Bulk
Part Status	Active
Pitch	0.197" (5.00mm)
Positions Per Level	10
Screw Material - Plating	Brass - Nickel Plated
Screw Thread	M3
Series	Buchanan
Torque - Screw	0.79 Nm (7.0 Lb-In)
Voltage	300, 300 V
Wire Entry Angle	Side
Wire Gauge	12-30 AWG
Wire Size	30 ? 12, .05 ? 3
Wire Termination	Screw - Rising Cage Cla.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	95Y5162	13.27	1	10		AMP - TE CONNECTIVITY		13.27 @ 10
	Zoro	G900929910	16.59	400	10		Te Connectivity		16.59 @ 400
	TE Connectivity	1-282888-1	16.6877	1	375		TE Connectivity (TE)		16.6877 @ 10
	Digi-Key	1148153	18.45	250	10		TE Connectivity AMP Connectors		18.45 @ 10
	Onlinecomponents.com	1-282888-1	30.77	1	500		TE Connectivity / AMP Brand		30.77 @ 10
	AmazonTP	B0151582JE	34.07	1	10	1	TE Connectivity / AMP Brand		34.07 @ 10
