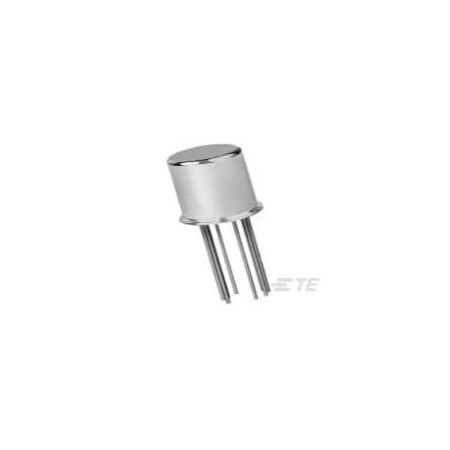

TE Connectivity M39016/9-059M

B083G94N26

M39016/9-059M, JMAC-9XM = M39016/9-059M

M39016/9-059M, JMAC-9XM = M39016/9-059Mzoom

Attributes

Key Value
Base Product Number1617121
CategoryRelays
Coil Current40.9 mA
Coil Insulation-
Coil Resistance220 Ohms, 220 ?
Coil TypeNon Latching, Non-Polar.
Coil Voltage9VDC
Coil Volts9V DC
Contact FormDPDT (2 Form C)
Contact Form - Relay2 Form C, DPDT, 2 C/O
Contact MaterialSilver Palladium (AgPd).
Contact Rating1A
Contact Rating (Current)1 A
DescriptionJMAC-9XM = M39016/9-059M
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number2-1617121-3-ND
Electrical Connection -.PC Pins
FeaturesHermetically Sealed Enc.
Item - RelayMilitary/Aerospace High.
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.2-1617121-3
Manufacturer Standard L.18 Weeks
MfrTE Connectivity Aerospa.
Mounting TypePrinted Circuit Board, .
Must Operate Voltage5.3 VDC
Must Release Voltage0.54 VDC
Operate Time2 ms
Operating Temp. Range-65 to 125?C
Operating Temperature-65?C ~ 125?C
PackageBulk
Package Quantity1
Power Consumption - Rel.368 mW
Product StatusActive
Relay TypeGeneral Purpose
Release Time1.5 ms
Seal RatingSealed - Hermetically
SeriesMAC
Switching Voltage115VAC, 28VDC - Max, 28V
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2-1617121-360.08256TE CONNECTIVITY/AMP BRAND60.08 @ 25
thumbzoomDigi-Key606535367.8726TE Connectivity Aerospace, Defense and Marine67.87 @ 2
Newark36AC106376.18254AMP - TE CONNECTIVITY76.18 @ 25
Onlinecomponents.comM39016/9-059M81.441In StockTE Connectivity / CII Brand81.44 @ 1
Allied ElectronicsE517579192.7210In StockTE Connectivity92.72 @ 10
thumbzoomZoroG000975718121.981In StockTe Connectivity121.98 @ 1
