TE Raychem 3-1123723-0

B07NQRCN27

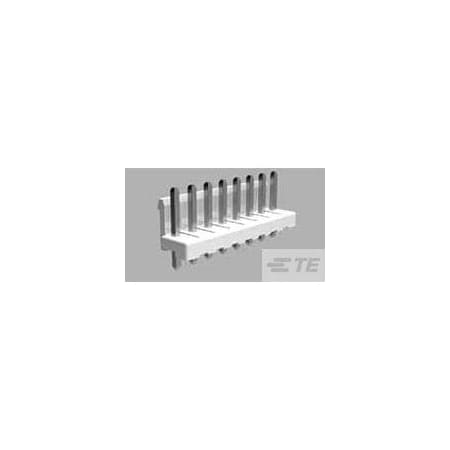

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1123723
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.303" (7.70mm)
Contact Length - Post0.146" (3.70mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.United States
Current Rating (Amps)7.5A
Fastening TypeFriction Lock
Features-
Ingress Protection-
Insulation ColorBlue
Insulation Height0.118" (3.00mm)
Insulation MaterialPolybutylene Terephthal.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions10
Number of Positions Loa.All
Number of Rows1
Operating Temperature-25?C ~ 105?C
Overall Contact Length0.567" (14.40mm)
PackageBulk
Part StatusActive
Pitch - Mating0.156" (3.96mm)
Row Spacing - Mating-
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY 3-1123723-00.26826000100TE Connectivity0.268 @ 26000
Digi-Key47308970.30502153846226000100TE Connectivity AMP Connectors0.305021538462 @ 26000
Newark98X95520.35126000100AMP - TE CONNECTIVITY0.351 @ 26000
thumbzoomZoroG4009388320.4726000100Te Connectivity0.47 @ 26000
Onlinecomponents.com3-1123723-00.655212000TE Connectivity / AMP Brand0.6552 @ 100
