TE Connectivity / AMP 3-1123723-4

mpn3-1123723-4
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

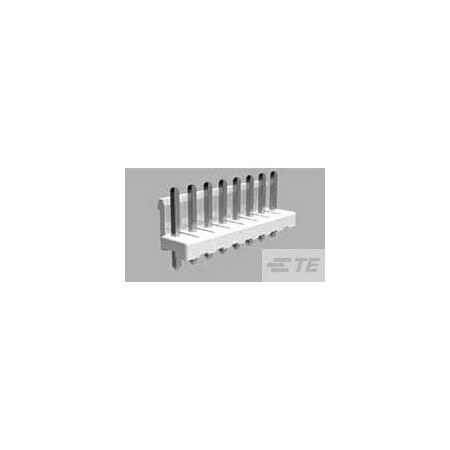

TE Connectivity / AMP Brand 3-1123723-4 Connector Headers and PCB Receptacles

zoom

Brand: TE Connectivity / AMP
PartNumber: 3-1123723-4
PackageQuantity: 1
Binding: Electronics
Manufacturer: TE Connectivity / AMP Brand
Label: TE Connectivity / AMP Brand

Attributes

Key	Value
Applications	General Purpose, Indust.
Base Product Number	1123723
Category	Connectors, Interconnec.
Color	Blue
Connection Material	Brass
Connector Terminates To	Printed Circuit Board
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	-
Contact Finish Thicknes.	-
Contact Length - Mating	0.303" (7.70mm)
Contact Length - Post	0.146" (3.70mm)
Contact Material	Brass
Contact Plating Thickne.	0.8 ?m
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	7.5 A
Current Rating (Amps)	7.5A
Fastening Type	Friction Lock
Features	Unshrouded, -
For Use With	Plug Housing
Height	8.2 mm
Hole Center to Center	3.96 mm
Ingress Protection	-
Insulation Color	Blue
Insulation Height	0.118" (3.00mm)
Insulation Material	Polybutylene Terephthal.
Item	PCB Mount Header
Length	15.78 mm
Mated Stacking Heights	-
Material	Glass-Filled PBT
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Max. Voltage	250V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-25?C ~ 105?C
Overall Contact Length	0.567" (14.40mm)
Package	Bulk
Package Quantity	1
Part Status	Active
Pitch - Mating	0.156" (3.96mm)
Row Spacing - Mating	-
Series	Economy Power
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole - Solder
Termination	Solder
Voltage Rating	250VAC
Width	0.421 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY AMP BRAND 3-1123723-4	0.118	500	7260		TE CONNECTIVITY/AMP BRAND		0.118 @ 500
	Newark	98X9556	0.156	30000	641		AMP - TE CONNECTIVITY		0.156 @ 30000
	Onlinecomponents.com	3-1123723-4	0.2434	1	7500		TE Connectivity / AMP Brand		0.2434 @ 1
	Digi-Key	4730901	0.3415	30000	641		TE Connectivity AMP Connectors		0.3415 @ 120
	Zoro	G000938997	90.0	500	641		Te Connectivity		90.0 @ 500
