mpn:
manufacturer:
MPN:
Preferred Price:
2.71
Price:
2.71
Min Simple Price:
0.755
Absolute Min Price:
2.25
Min Price:
2.25
Dimensions:
[1.0, 1.0, 1.0]
qty:
132
simpleSku:
NjI5OA:::3-641120-3
sku:
NjI5OA::WI:3-641120-3@y0
condition:
11
seller:
Newark
amzMan:
te connectivity / amp brand
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications | General Purpose, Industrial |
| Base Product Number | 641120 |
| Category | Connectors, Interconnects |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0?in (0.38?m) |
| Contact Finish Thickness - Post, Features, Ingress Protection, Mated Stacking Heights, Row Spacing - Mating | - |
| Contact Length - Mating | 0.400" (10.16mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Country of Origin (subject to change) | China |
| Current Rating (Amps) | Varies by Wire Gauge |

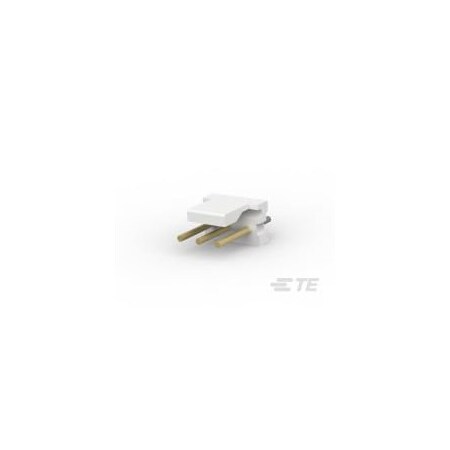

| Description | CONN HEADER VERT 3POS 3.96MM |
| Detailed Description | Connector Header Through Hole 3 position 0.156" (3.96mm) |
| Digi-Key Part Number | 3-641120-3-ND |
| Fastening Type | Friction Lock |
| Insulation Color | Natural |
| Insulation Height | 0.425" (10.80mm) |
| Insulation Material | Thermoplastic, Glass Filled |
| Manufacturer Product Number | 3-641120-3 |
| Manufacturer Standard Lead Time | 19 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature | -55?C ~ 105?C |
| Overall Contact Length | 0.650" (16.51mm) |
| Package | Bulk |
| Pitch - Mating | 0.156" (3.96mm) |
| Product Status | Active |
| Series | MTA-156 |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600VAC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Newark | 18R1022 | 0.755 | 649.3 | 2000 | 100 | AMP - TE CONNECTIVITY | 0.755 @ Qty: 1000+ | |||
 | Digi-Key | 1862670 | 0.77387 | 665.5282 | 2000 | 100 | TE Connectivity AMP Connectors | 0.77387 @ Qty: 2000+ | ||
| Onlinecomponents.com | 3-641120-3 | 0.84 | 36.844 | 1 | 24006 | TE Connectivity / AMP Brand | 0.61 @ Qty: 150+ | |||
 | Zoro | G300927974 | 0.88 | 55.968 | 9 | 100 | 115 | Te Connectivity | 0.88 @ Qty: 100+ | |
| AmazonTP | B00KSPLNKI | 752.25 | 45435.9 | 1 | 100 | 5 | TE Connectivity | 752.25 @ Qty: 100+ |
