TE Connectivity / AMP 4-1123723-4

B011HRSGHI

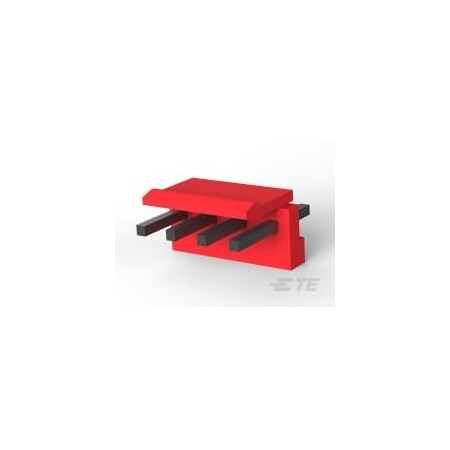

TE Connectivity / AMP Brand 4-1123723-4 Connector Headers and PCB Receptacles

TE Connectivity / AMP Brand 4-1123723-4 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationPower
ApplicationsGeneral Purpose, Indust.
Base Product Number1123723
CategoryConnectors, Interconnec.
ColorRed
Connection MaterialBrass
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.303" (7.70mm)
Contact Length - Post0.146" (3.70mm)
Contact MaterialBrass
Contact Plating Thickne.1 ?m
Contact ShapeSquare
Contact TypeTab; Pin, Male Pin
Current Rating8 A
Current Rating (Amps)7.5A
DescriptionCONN HEADER VERT 4POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA117605-ND
Fastening TypeFriction Lock
FeaturesUnshrouded, -
Flammability RatingUL 94 V-0
For Use WithPlug Housing
Height8.2 mm
Hole Center to Center3.96 mm
Ingress Protection-
Insulation ColorRed
Insulation Height0.118" (3.00mm)
Insulation MaterialPolybutylene Terephthal.
ItemHeader
Length0.621 in
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.4-1123723-4
Mated Stacking Heights-
MaterialGlass-Filled PBT
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts4
Number of Positions4
Number of Positions Loa.All
Number of Rows1
Operating Temperature-25?C ~ 105?C
Overall Contact Length0.567" (14.40mm)
PackageBulk
Package Quantity1
Pitch - Mating0.156" (3.96mm)
Product StatusActive
Row Spacing - Mating-
SeriesEconomy Power
ShroudingShrouded - 1 Wall
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder
TerminationSolder
Voltage Rating250VAC
Width0.421 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 4-1123723-40.0936007000TE CONNECTIVITY/AMP BRAND0.093 @ 600
Newark99X22160.12430000806AMP - TE CONNECTIVITY0.124 @ 30000
thumbzoomDigi-Key47309140.17486007000TE Connectivity AMP Connectors0.1748 @ 600
Onlinecomponents.com4-1123723-40.188217500TE Connectivity / AMP Brand0.1882 @ 1
thumbzoomZoroG60093901184.01806Te Connectivity84.0 @ 1
